New Press Machines

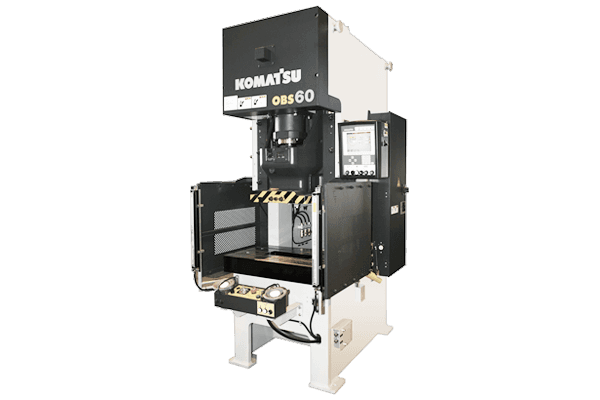

KOMATSU OBS
Even easier to use and safer, the best-selling 1-point press model.
Single-Shot ProcessingProgressive ProcessingGeneral Purpose
Specifications
OBS35-H
- Type
- H
- Frame Shape
- C-Frame
- Capacity(kN)
- 350
- Stroke(mm)
- 40
- SPM(spm)
- 120〜240
- Die Height(mm)
- 210
- Die Height Adjustment(mm)
- 55
- Slide Size(mm)
- 350×300
- Bed Size(mm)
- 700×400
| Type | H |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 350 |
| Stroke(mm) | 40 |
| SPM(spm) | 120〜240 |
| Die Height(mm) | 210 |
| Die Height Adjustment(mm) | 55 |
| Slide Size(mm) | 350×300 |
| Bed Size(mm) | 700×400 |
OBS35-L
- Type
- L
- Frame Shape
- C-Frame
- Capacity(kN)
- 350
- Stroke(mm)
- 130
- SPM(spm)
- 50〜100
- Die Height(mm)
- 290
- Die Height Adjustment(mm)
- 55
- Slide Size(mm)
- 350×300
- Bed Size(mm)
- 700×400
| Type | L |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 350 |
| Stroke(mm) | 130 |
| SPM(spm) | 50〜100 |
| Die Height(mm) | 290 |
| Die Height Adjustment(mm) | 55 |
| Slide Size(mm) | 350×300 |
| Bed Size(mm) | 700×400 |
OBS35-S
- Type
- S
- Frame Shape
- C-Frame
- Capacity(kN)
- 350
- Stroke(mm)
- 80
- SPM(spm)
- 60〜120
- Die Height(mm)
- 210
- Die Height Adjustment(mm)
- 55
- Slide Size(mm)
- 350×300
- Bed Size(mm)
- 700×400
| Type | S |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 350 |
| Stroke(mm) | 80 |
| SPM(spm) | 60〜120 |
| Die Height(mm) | 210 |
| Die Height Adjustment(mm) | 55 |
| Slide Size(mm) | 350×300 |
| Bed Size(mm) | 700×400 |
OBS45-H
- Type
- H
- Frame Shape
- C-Frame
- Capacity(kN)
- 450
- Stroke(mm)
- 50
- SPM(spm)
- 100〜200
- Die Height(mm)
- 250
- Die Height Adjustment(mm)
- 60
- Slide Size(mm)
- 400×350
- Bed Size(mm)
- 800×450
| Type | H |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 450 |
| Stroke(mm) | 50 |
| SPM(spm) | 100〜200 |
| Die Height(mm) | 250 |
| Die Height Adjustment(mm) | 60 |
| Slide Size(mm) | 400×350 |
| Bed Size(mm) | 800×450 |
OBS45-S
- Type
- S
- Frame Shape
- C-Frame
- Capacity(kN)
- 450
- Stroke(mm)
- 100
- SPM(spm)
- 50〜100
- Die Height(mm)
- 250
- Die Height Adjustment(mm)
- 60
- Slide Size(mm)
- 400×350
- Bed Size(mm)
- 800×450
| Type | S |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 450 |
| Stroke(mm) | 100 |
| SPM(spm) | 50〜100 |
| Die Height(mm) | 250 |
| Die Height Adjustment(mm) | 60 |
| Slide Size(mm) | 400×350 |
| Bed Size(mm) | 800×450 |
OBS45-L
- Type
- L
- Frame Shape
- C-Frame
- Capacity(kN)
- 450
- Stroke(mm)
- 140
- SPM(spm)
- 50〜100
- Die Height(mm)
- 300
- Die Height Adjustment(mm)
- 60
- Slide Size(mm)
- 400×350
- Bed Size(mm)
- 800×450
| Type | L |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 450 |
| Stroke(mm) | 140 |
| SPM(spm) | 50〜100 |
| Die Height(mm) | 300 |
| Die Height Adjustment(mm) | 60 |
| Slide Size(mm) | 400×350 |
| Bed Size(mm) | 800×450 |
OBS60-H
- Type
- H
- Frame Shape
- C-Frame
- Capacity(kN)
- 600
- Stroke(mm)
- 90
- SPM(spm)
- 75〜150
- Die Height(mm)
- 300
- Die Height Adjustment(mm)
- 70
- Slide Size(mm)
- 500×400
- Bed Size(mm)
- 900×550
| Type | H |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 600 |
| Stroke(mm) | 90 |
| SPM(spm) | 75〜150 |
| Die Height(mm) | 300 |
| Die Height Adjustment(mm) | 70 |
| Slide Size(mm) | 500×400 |
| Bed Size(mm) | 900×550 |
OBS60-L
- Type
- L
- Frame Shape
- C-Frame
- Capacity(kN)
- 600
- Stroke(mm)
- 160
- SPM(spm)
- 42〜85
- Die Height(mm)
- 350
- Die Height Adjustment(mm)
- 70
- Slide Size(mm)
- 500×400
- Bed Size(mm)
- 900×550
| Type | L |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 600 |
| Stroke(mm) | 160 |
| SPM(spm) | 42〜85 |
| Die Height(mm) | 350 |
| Die Height Adjustment(mm) | 70 |
| Slide Size(mm) | 500×400 |
| Bed Size(mm) | 900×550 |
OBS60-S
- Type
- S
- Frame Shape
- C-Frame
- Capacity(kN)
- 600
- Stroke(mm)
- 120
- SPM(spm)
- 42〜85
- Die Height(mm)
- 300
- Die Height Adjustment(mm)
- 70
- Slide Size(mm)
- 500×400
- Bed Size(mm)
- 900×550
| Type | S |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 600 |
| Stroke(mm) | 120 |
| SPM(spm) | 42〜85 |
| Die Height(mm) | 300 |
| Die Height Adjustment(mm) | 70 |
| Slide Size(mm) | 500×400 |
| Bed Size(mm) | 900×550 |
OBS80-S
- Type
- S
- Frame Shape
- C-Frame
- Capacity(kN)
- 800
- Stroke(mm)
- 130
- SPM(spm)
- 37〜75
- Die Height(mm)
- 320
- Die Height Adjustment(mm)
- 80
- Slide Size(mm)
- 550×450
- Bed Size(mm)
- 1000×600
| Type | S |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 800 |
| Stroke(mm) | 130 |
| SPM(spm) | 37〜75 |
| Die Height(mm) | 320 |
| Die Height Adjustment(mm) | 80 |
| Slide Size(mm) | 550×450 |
| Bed Size(mm) | 1000×600 |
OBS80-L
- Type
- L
- Frame Shape
- C-Frame
- Capacity(kN)
- 800
- Stroke(mm)
- 180
- SPM(spm)
- 37〜75
- Die Height(mm)
- 350
- Die Height Adjustment(mm)
- 80
- Slide Size(mm)
- 550×450
- Bed Size(mm)
- 1000×600
| Type | L |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 800 |
| Stroke(mm) | 180 |
| SPM(spm) | 37〜75 |
| Die Height(mm) | 350 |
| Die Height Adjustment(mm) | 80 |
| Slide Size(mm) | 550×450 |
| Bed Size(mm) | 1000×600 |
OBS80-H
- Type
- H
- Frame Shape
- C-Frame
- Capacity(kN)
- 800
- Stroke(mm)
- 100
- SPM(spm)
- 55〜110
- Die Height(mm)
- 300
- Die Height Adjustment(mm)
- 80
- Slide Size(mm)
- 550×450
- Bed Size(mm)
- 1000×460
| Type | H |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 800 |
| Stroke(mm) | 100 |
| SPM(spm) | 55〜110 |
| Die Height(mm) | 300 |
| Die Height Adjustment(mm) | 80 |
| Slide Size(mm) | 550×450 |
| Bed Size(mm) | 1000×460 |
OBS110-L
- Type
- L
- Frame Shape
- C-Frame
- Capacity(kN)
- 1100
- Stroke(mm)
- 200
- SPM(spm)
- 32〜65
- Die Height(mm)
- 380
- Die Height Adjustment(mm)
- 100
- Slide Size(mm)
- 620×530
- Bed Size(mm)
- 1100×680
| Type | L |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 1100 |
| Stroke(mm) | 200 |
| SPM(spm) | 32〜65 |
| Die Height(mm) | 380 |
| Die Height Adjustment(mm) | 100 |
| Slide Size(mm) | 620×530 |
| Bed Size(mm) | 1100×680 |
OBS110-S
- Type
- S
- Frame Shape
- C-Frame
- Capacity(kN)
- 1100
- Stroke(mm)
- 150
- SPM(spm)
- 32〜65
- Die Height(mm)
- 350
- Die Height Adjustment(mm)
- 100
- Slide Size(mm)
- 620×530
- Bed Size(mm)
- 1100×680
| Type | S |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 1100 |
| Stroke(mm) | 150 |
| SPM(spm) | 32〜65 |
| Die Height(mm) | 350 |
| Die Height Adjustment(mm) | 100 |
| Slide Size(mm) | 620×530 |
| Bed Size(mm) | 1100×680 |
OBS150-S
- Type
- S
- Frame Shape
- C-Frame
- Capacity(kN)
- 1500
- Stroke(mm)
- 200
- SPM(spm)
- 27〜55
- Die Height(mm)
- 420
- Die Height Adjustment(mm)
- 100
- Slide Size(mm)
- 700×550
- Bed Size(mm)
- 1250×760
| Type | S |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 1500 |
| Stroke(mm) | 200 |
| SPM(spm) | 27〜55 |
| Die Height(mm) | 420 |
| Die Height Adjustment(mm) | 100 |
| Slide Size(mm) | 700×550 |
| Bed Size(mm) | 1250×760 |
OBS150-L
- Type
- L
- Frame Shape
- C-Frame
- Capacity(kN)
- 1500
- Stroke(mm)
- 250
- SPM(spm)
- 27〜55
- Die Height(mm)
- 450
- Die Height Adjustment(mm)
- 100
- Slide Size(mm)
- 700×550
- Bed Size(mm)
- 1250×760
| Type | L |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 1500 |
| Stroke(mm) | 250 |
| SPM(spm) | 27〜55 |
| Die Height(mm) | 450 |
| Die Height Adjustment(mm) | 100 |
| Slide Size(mm) | 700×550 |
| Bed Size(mm) | 1250×760 |
OBS200-S
- Type
- S
- Frame Shape
- C-Frame
- Capacity(kN)
- 2000
- Stroke(mm)
- 250
- SPM(spm)
- 25〜50
- Die Height(mm)
- 450
- Die Height Adjustment(mm)
- 120
- Slide Size(mm)
- 850×650
- Bed Size(mm)
- 1450×840
| Type | S |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 2000 |
| Stroke(mm) | 250 |
| SPM(spm) | 25〜50 |
| Die Height(mm) | 450 |
| Die Height Adjustment(mm) | 120 |
| Slide Size(mm) | 850×650 |
| Bed Size(mm) | 1450×840 |
OBS200-L
- Type
- L
- Frame Shape
- C-Frame
- Capacity(kN)
- 2000
- Stroke(mm)
- 300
- SPM(spm)
- 25〜50
- Die Height(mm)
- 480
- Die Height Adjustment(mm)
- 120
- Slide Size(mm)
- 850×650
- Bed Size(mm)
- 1450×840
| Type | L |
|---|---|
| Frame Shape | C-Frame |
| Capacity(kN) | 2000 |
| Stroke(mm) | 300 |
| SPM(spm) | 25〜50 |
| Die Height(mm) | 480 |
| Die Height Adjustment(mm) | 120 |
| Slide Size(mm) | 850×650 |
| Bed Size(mm) | 1450×840 |
| Model | OBS35-H | OBS35-L | OBS35-S | OBS45-H | OBS45-S | OBS45-L | OBS60-H |
|---|---|---|---|---|---|---|---|
| Type | H | L | S | H | S | L | H |
| Frame Shape | C-Frame | C-Frame | C-Frame | C-Frame | C-Frame | C-Frame | C-Frame |
| Capacity(kN) | 350 | 350 | 350 | 450 | 450 | 450 | 600 |
| Stroke(mm) | 40 | 130 | 80 | 50 | 100 | 140 | 90 |
| SPM(spm) | 120〜240 | 50〜100 | 60〜120 | 100〜200 | 50〜100 | 50〜100 | 75〜150 |
| Die Height(mm) | 210 | 290 | 210 | 250 | 250 | 300 | 300 |
| Die Height Adjustment(mm) | 55 | 55 | 55 | 60 | 60 | 60 | 70 |
| Slide Size(mm) | 350×300 | 350×300 | 350×300 | 400×350 | 400×350 | 400×350 | 500×400 |
| Bed Size(mm) | 700×400 | 700×400 | 700×400 | 800×450 | 800×450 | 800×450 | 900×550 |
| Model | OBS60-L | OBS60-S | OBS80-S | OBS80-L | OBS80-H | OBS110-L | OBS110-S |
|---|---|---|---|---|---|---|---|
| Type | L | S | S | L | H | L | S |
| Frame Shape | C-Frame | C-Frame | C-Frame | C-Frame | C-Frame | C-Frame | C-Frame |
| Capacity(kN) | 600 | 600 | 800 | 800 | 800 | 1100 | 1100 |
| Stroke(mm) | 160 | 120 | 130 | 180 | 100 | 200 | 150 |
| SPM(spm) | 42〜85 | 42〜85 | 37〜75 | 37〜75 | 55〜110 | 32〜65 | 32〜65 |
| Die Height(mm) | 350 | 300 | 320 | 350 | 300 | 380 | 350 |
| Die Height Adjustment(mm) | 70 | 70 | 80 | 80 | 80 | 100 | 100 |
| Slide Size(mm) | 500×400 | 500×400 | 550×450 | 550×450 | 550×450 | 620×530 | 620×530 |
| Bed Size(mm) | 900×550 | 900×550 | 1000×600 | 1000×600 | 1000×460 | 1100×680 | 1100×680 |
| Model | OBS150-S | OBS150-L | OBS200-S | OBS200-L |
|---|---|---|---|---|
| Type | S | L | S | L |
| Frame Shape | C-Frame | C-Frame | C-Frame | C-Frame |
| Capacity(kN) | 1500 | 1500 | 2000 | 2000 |
| Stroke(mm) | 200 | 250 | 250 | 300 |
| SPM(spm) | 27〜55 | 27〜55 | 25〜50 | 25〜50 |
| Die Height(mm) | 420 | 450 | 450 | 480 |
| Die Height Adjustment(mm) | 100 | 100 | 120 | 120 |
| Slide Size(mm) | 700×550 | 700×550 | 850×650 | 850×650 |
| Bed Size(mm) | 1250×760 | 1250×760 | 1450×840 | 1450×840 |
