New Press Machines

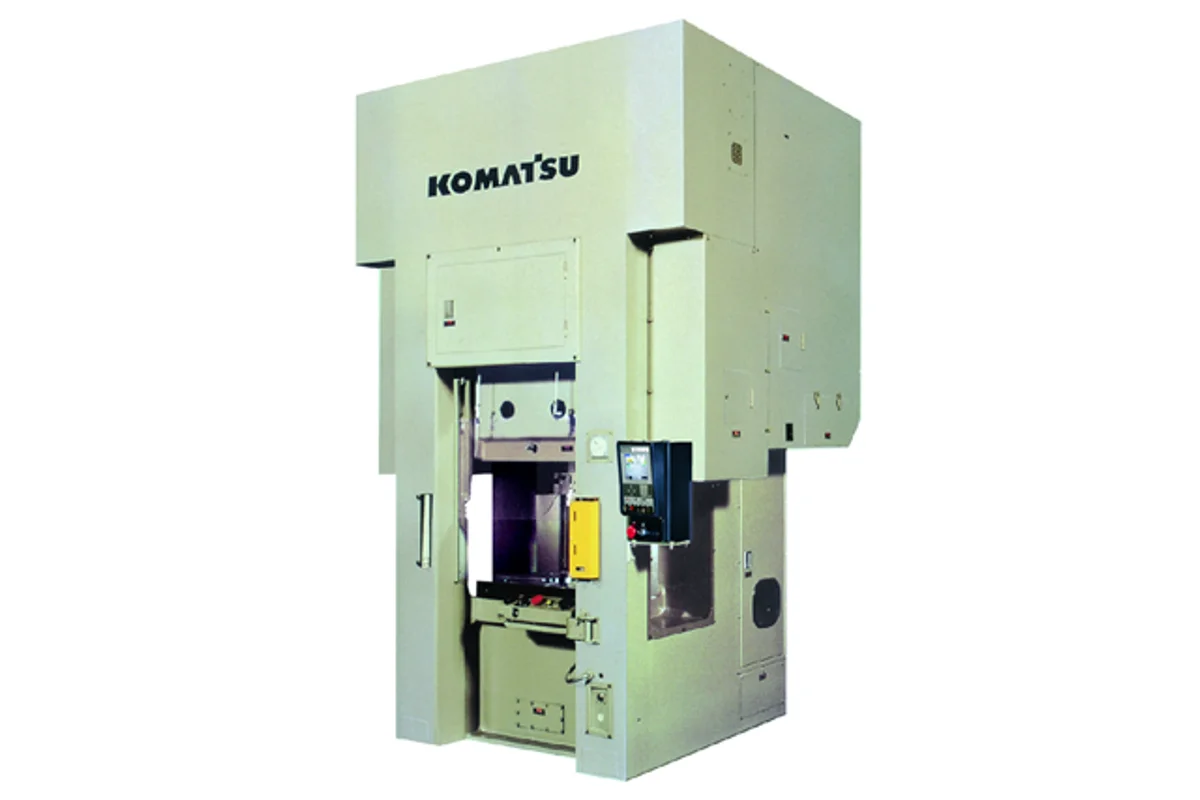

KOMATSU L2C
Multi-stage cold forging press that supports high-precision transfer net processing.
Cold Forging
Specifications
L2C250
- Frame Shape
- Straight Side
- Capacity(kN)
- 2500
- Stroke(mm)
- 200
- SPM(spm)
- 〜50
- Die Height(mm)
- 500
- Die Height Adjustment(mm)
- 50
- Slide Size(mm)
- 800×500
- Bed Size(mm)
- 800×560
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 2500 |
| Stroke(mm) | 200 |
| SPM(spm) | 〜50 |
| Die Height(mm) | 500 |
| Die Height Adjustment(mm) | 50 |
| Slide Size(mm) | 800×500 |
| Bed Size(mm) | 800×560 |
L2C630
- Frame Shape
- Straight Side
- Capacity(kN)
- 6300
- Stroke(mm)
- 250
- SPM(spm)
- 〜40
- Die Height(mm)
- 710
- Die Height Adjustment(mm)
- 50
- Slide Size(mm)
- 1000×900
- Bed Size(mm)
- 1000×900
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 6300 |
| Stroke(mm) | 250 |
| SPM(spm) | 〜40 |
| Die Height(mm) | 710 |
| Die Height Adjustment(mm) | 50 |
| Slide Size(mm) | 1000×900 |
| Bed Size(mm) | 1000×900 |
L2C800
- Frame Shape
- Straight Side
- Capacity(kN)
- 8000
- Stroke(mm)
- 300
- SPM(spm)
- 〜35
- Die Height(mm)
- 700
- Die Height Adjustment(mm)
- 50
- Slide Size(mm)
- 1100×900
- Bed Size(mm)
- 1100×900
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 8000 |
| Stroke(mm) | 300 |
| SPM(spm) | 〜35 |
| Die Height(mm) | 700 |
| Die Height Adjustment(mm) | 50 |
| Slide Size(mm) | 1100×900 |
| Bed Size(mm) | 1100×900 |
L2C1250
- Frame Shape
- Straight Side
- Capacity(kN)
- 12500
- Stroke(mm)
- 300
- SPM(spm)
- 〜30
- Die Height(mm)
- 800
- Die Height Adjustment(mm)
- 50
- Slide Size(mm)
- 1400×1200
- Bed Size(mm)
- 1400×1200
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 12500 |
| Stroke(mm) | 300 |
| SPM(spm) | 〜30 |
| Die Height(mm) | 800 |
| Die Height Adjustment(mm) | 50 |
| Slide Size(mm) | 1400×1200 |
| Bed Size(mm) | 1400×1200 |
| Model | L2C250 | L2C630 | L2C800 | L2C1250 |
|---|---|---|---|---|
| Frame Shape | Straight Side | Straight Side | Straight Side | Straight Side |
| Capacity(kN) | 2500 | 6300 | 8000 | 12500 |
| Stroke(mm) | 200 | 250 | 300 | 300 |
| SPM(spm) | 〜50 | 〜40 | 〜35 | 〜30 |
| Die Height(mm) | 500 | 710 | 700 | 800 |
| Die Height Adjustment(mm) | 50 | 50 | 50 | 50 |
| Slide Size(mm) | 800×500 | 1000×900 | 1100×900 | 1400×1200 |
| Bed Size(mm) | 800×560 | 1000×900 | 1100×900 | 1400×1200 |
