New Press Machines

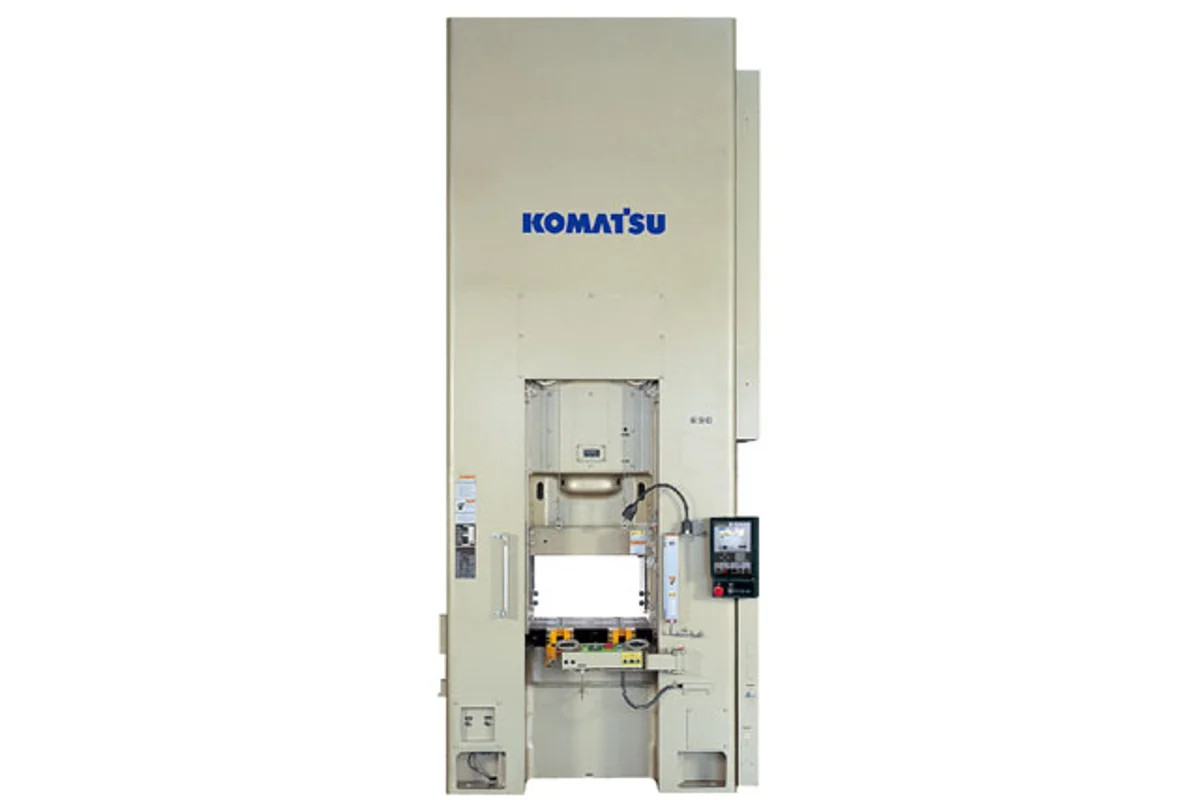

KOMATSU L1C
Cold forging press that inherits the name of the famous MyPress.
Cold Forging
Specifications
L1C250
- Frame Shape
- Straight Side
- Capacity(kN)
- 2500
- Stroke(mm)
- 160
- SPM(spm)
- 〜55
- Die Height(mm)
- 400
- Die Height Adjustment(mm)
- 40
- Slide Size(mm)
- 600×400
- Bed Size(mm)
- 600×500
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 2500 |
| Stroke(mm) | 160 |
| SPM(spm) | 〜55 |
| Die Height(mm) | 400 |
| Die Height Adjustment(mm) | 40 |
| Slide Size(mm) | 600×400 |
| Bed Size(mm) | 600×500 |
L1C400
- Frame Shape
- Straight Side
- Capacity(kN)
- 4000
- Stroke(mm)
- 200
- SPM(spm)
- 〜50
- Die Height(mm)
- 460
- Die Height Adjustment(mm)
- 40
- Slide Size(mm)
- 700×500
- Bed Size(mm)
- 700×600
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 4000 |
| Stroke(mm) | 200 |
| SPM(spm) | 〜50 |
| Die Height(mm) | 460 |
| Die Height Adjustment(mm) | 40 |
| Slide Size(mm) | 700×500 |
| Bed Size(mm) | 700×600 |
L1C630
- Frame Shape
- Straight Side
- Capacity(kN)
- 6300
- Stroke(mm)
- 220
- SPM(spm)
- 〜45
- Die Height(mm)
- 520
- Die Height Adjustment(mm)
- 50
- Slide Size(mm)
- 800×600
- Bed Size(mm)
- 800×700
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 6300 |
| Stroke(mm) | 220 |
| SPM(spm) | 〜45 |
| Die Height(mm) | 520 |
| Die Height Adjustment(mm) | 50 |
| Slide Size(mm) | 800×600 |
| Bed Size(mm) | 800×700 |
L1C800
- Frame Shape
- Straight Side
- Capacity(kN)
- 8000
- Stroke(mm)
- 250
- SPM(spm)
- 〜40
- Die Height(mm)
- 600
- Die Height Adjustment(mm)
- 50
- Slide Size(mm)
- 900×1000
- Bed Size(mm)
- 900×1000
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 8000 |
| Stroke(mm) | 250 |
| SPM(spm) | 〜40 |
| Die Height(mm) | 600 |
| Die Height Adjustment(mm) | 50 |
| Slide Size(mm) | 900×1000 |
| Bed Size(mm) | 900×1000 |
L1C1000
- Frame Shape
- Straight Side
- Capacity(kN)
- 10000
- Stroke(mm)
- 250
- SPM(spm)
- 〜30
- Die Height(mm)
- 700
- Die Height Adjustment(mm)
- 50
- Slide Size(mm)
- 900×900
- Bed Size(mm)
- 1000×900
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 10000 |
| Stroke(mm) | 250 |
| SPM(spm) | 〜30 |
| Die Height(mm) | 700 |
| Die Height Adjustment(mm) | 50 |
| Slide Size(mm) | 900×900 |
| Bed Size(mm) | 1000×900 |
| Model | L1C250 | L1C400 | L1C630 | L1C800 | L1C1000 |
|---|---|---|---|---|---|
| Frame Shape | Straight Side | Straight Side | Straight Side | Straight Side | Straight Side |
| Capacity(kN) | 2500 | 4000 | 6300 | 8000 | 10000 |
| Stroke(mm) | 160 | 200 | 220 | 250 | 250 |
| SPM(spm) | 〜55 | 〜50 | 〜45 | 〜40 | 〜30 |
| Die Height(mm) | 400 | 460 | 520 | 600 | 700 |
| Die Height Adjustment(mm) | 40 | 40 | 50 | 50 | 50 |
| Slide Size(mm) | 600×400 | 700×500 | 800×600 | 900×1000 | 900×900 |
| Bed Size(mm) | 600×500 | 700×600 | 800×700 | 900×1000 | 1000×900 |
