New Press Machines

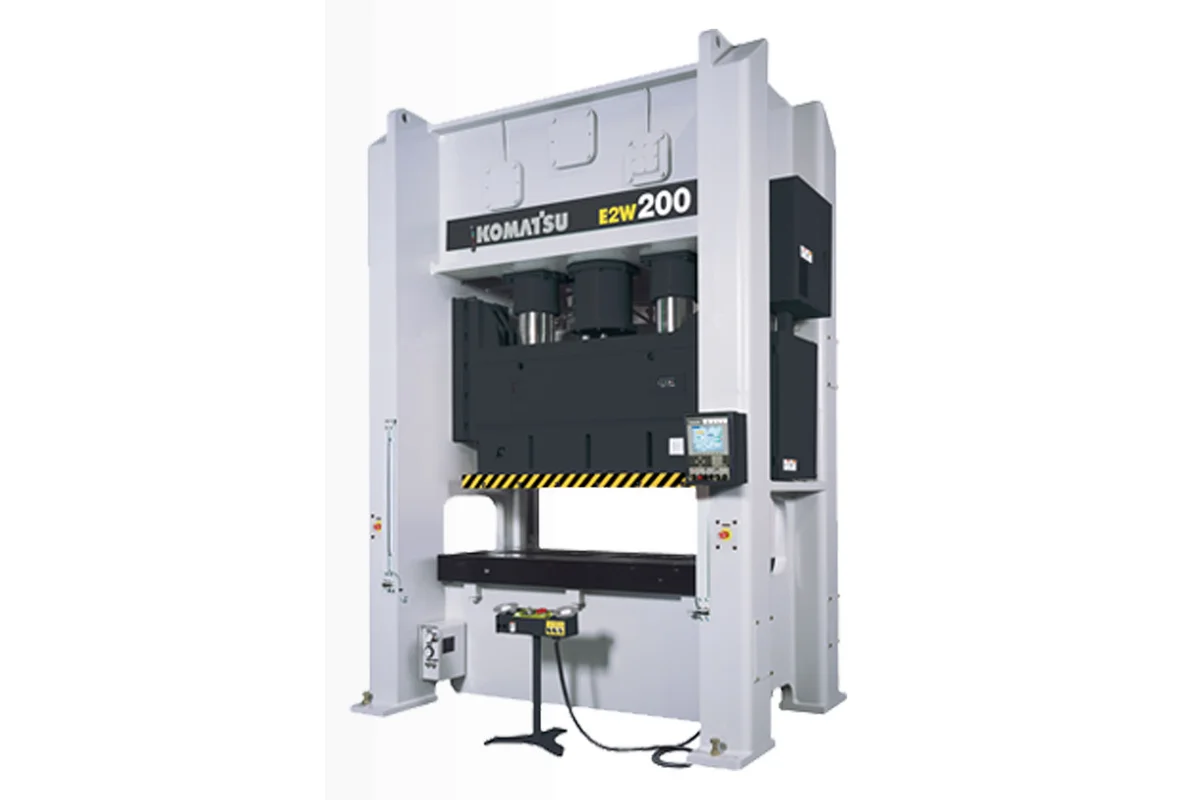

KOMATSU E2W

Name: MEGA TECH
Address: 107/5 Thetsaban Samrong Tai 3 Rd, Samrong Klang, Phra Pradaeng, Samut Prakan, 10130, TH
Telephone: +66-2-380-0367
Price range: $$

Standard model of straight-side press

Single-Shot ProcessingProgressive ProcessingGeneral Purpose

Specifications

E2W110-S

Type: SVS
Frame Shape: Straight Side
Capacity(kN): 1100
Stroke(mm): 180
SPM(spm): 〜70
Die Height(mm): 400
Die Height Adjustment(mm): 100
Slide Size(mm): 1400×520
Bed Size(mm): 1660×700

E2W110-S
Type	SVS
Frame Shape	Straight Side
Capacity(kN)	1100
Stroke(mm)	180
SPM(spm)	〜70
Die Height(mm)	400
Die Height Adjustment(mm)	100
Slide Size(mm)	1400×520
Bed Size(mm)	1660×700

E2W110-H

Type: HVS
Frame Shape: Straight Side
Capacity(kN): 1100
Stroke(mm): 110
SPM(spm): 〜100
Die Height(mm): 400
Die Height Adjustment(mm): 100
Slide Size(mm): 1400×520
Bed Size(mm): 1660×700

E2W110-H
Type	HVS
Frame Shape	Straight Side
Capacity(kN)	1100
Stroke(mm)	110
SPM(spm)	〜100
Die Height(mm)	400
Die Height Adjustment(mm)	100
Slide Size(mm)	1400×520
Bed Size(mm)	1660×700

E2W160-H

Type: HVS
Frame Shape: Straight Side
Capacity(kN): 1600
Stroke(mm): 130
SPM(spm): 〜85
Die Height(mm): 460
Die Height Adjustment(mm): 100
Slide Size(mm): 1600×580
Bed Size(mm): 1850×760

E2W160-H
Type	HVS
Frame Shape	Straight Side
Capacity(kN)	1600
Stroke(mm)	130
SPM(spm)	〜85
Die Height(mm)	460
Die Height Adjustment(mm)	100
Slide Size(mm)	1600×580
Bed Size(mm)	1850×760

E2W160-S

Type: SVS
Frame Shape: Straight Side
Capacity(kN): 1600
Stroke(mm): 200
SPM(spm): 〜60
Die Height(mm): 460
Die Height Adjustment(mm): 100
Slide Size(mm): 1600×580
Bed Size(mm): 1850×760

E2W160-S
Type	SVS
Frame Shape	Straight Side
Capacity(kN)	1600
Stroke(mm)	200
SPM(spm)	〜60
Die Height(mm)	460
Die Height Adjustment(mm)	100
Slide Size(mm)	1600×580
Bed Size(mm)	1850×760

E2W200-S

Type: SVS
Frame Shape: Straight Side
Capacity(kN): 2000
Stroke(mm): 250
SPM(spm): 〜50
Die Height(mm): 500
Die Height Adjustment(mm): 120
Slide Size(mm): 1850×650
Bed Size(mm): 2150×850

E2W200-S
Type	SVS
Frame Shape	Straight Side
Capacity(kN)	2000
Stroke(mm)	250
SPM(spm)	〜50
Die Height(mm)	500
Die Height Adjustment(mm)	120
Slide Size(mm)	1850×650
Bed Size(mm)	2150×850

E2W200-H

Type: HVS
Frame Shape: Straight Side
Capacity(kN): 2000
Stroke(mm): 150
SPM(spm): 〜70
Die Height(mm): 500
Die Height Adjustment(mm): 120
Slide Size(mm): 1850×650
Bed Size(mm): 2150×850

E2W200-H
Type	HVS
Frame Shape	Straight Side
Capacity(kN)	2000
Stroke(mm)	150
SPM(spm)	〜70
Die Height(mm)	500
Die Height Adjustment(mm)	120
Slide Size(mm)	1850×650
Bed Size(mm)	2150×850

E2W250-H

Type: HVS
Frame Shape: Straight Side
Capacity(kN): 2500
Stroke(mm): 170
SPM(spm): 〜55
Die Height(mm): 550
Die Height Adjustment(mm): 120
Slide Size(mm): 2100×700
Bed Size(mm): 2400×950

E2W250-H
Type	HVS
Frame Shape	Straight Side
Capacity(kN)	2500
Stroke(mm)	170
SPM(spm)	〜55
Die Height(mm)	550
Die Height Adjustment(mm)	120
Slide Size(mm)	2100×700
Bed Size(mm)	2400×950

E2W250-S

Type: SVS
Frame Shape: Straight Side
Capacity(kN): 2500
Stroke(mm): 300
SPM(spm): 〜40
Die Height(mm): 550
Die Height Adjustment(mm): 120
Slide Size(mm): 2100×700
Bed Size(mm): 2400×950

E2W250-S
Type	SVS
Frame Shape	Straight Side
Capacity(kN)	2500
Stroke(mm)	300
SPM(spm)	〜40
Die Height(mm)	550
Die Height Adjustment(mm)	120
Slide Size(mm)	2100×700
Bed Size(mm)	2400×950

E2W300-H

Type: HVS
Frame Shape: Straight Side
Capacity(kN): 3000
Stroke(mm): 170
SPM(spm): 〜50
Die Height(mm): 600
Die Height Adjustment(mm): 200
Slide Size(mm): 2100×900
Bed Size(mm): 2400×1200

E2W300-H
Type	HVS
Frame Shape	Straight Side
Capacity(kN)	3000
Stroke(mm)	170
SPM(spm)	〜50
Die Height(mm)	600
Die Height Adjustment(mm)	200
Slide Size(mm)	2100×900
Bed Size(mm)	2400×1200

E2W300-S

Type: SVS
Frame Shape: Straight Side
Capacity(kN): 3000
Stroke(mm): 350
SPM(spm): 〜30
Die Height(mm): 600
Die Height Adjustment(mm): 200
Slide Size(mm): 2100×900
Bed Size(mm): 2400×1200

E2W300-S
Type	SVS
Frame Shape	Straight Side
Capacity(kN)	3000
Stroke(mm)	350
SPM(spm)	〜30
Die Height(mm)	600
Die Height Adjustment(mm)	200
Slide Size(mm)	2100×900
Bed Size(mm)	2400×1200

Model	E2W110-S	E2W110-H	E2W160-H	E2W160-S	E2W200-S	E2W200-H	E2W250-H
Type	SVS	HVS	HVS	SVS	SVS	HVS	HVS
Frame Shape	Straight Side	Straight Side	Straight Side	Straight Side	Straight Side	Straight Side	Straight Side
Capacity(kN)	1100	1100	1600	1600	2000	2000	2500
Stroke(mm)	180	110	130	200	250	150	170
SPM(spm)	〜70	〜100	〜85	〜60	〜50	〜70	〜55
Die Height(mm)	400	400	460	460	500	500	550
Die Height Adjustment(mm)	100	100	100	100	120	120	120
Slide Size(mm)	1400×520	1400×520	1600×580	1600×580	1850×650	1850×650	2100×700
Bed Size(mm)	1660×700	1660×700	1850×760	1850×760	2150×850	2150×850	2400×950

Model	E2W250-S	E2W300-H	E2W300-S
Type	SVS	HVS	SVS
Frame Shape	Straight Side	Straight Side	Straight Side
Capacity(kN)	2500	3000	3000
Stroke(mm)	300	170	350
SPM(spm)	〜40	〜50	〜30
Die Height(mm)	550	600	600
Die Height Adjustment(mm)	120	200	200
Slide Size(mm)	2100×700	2100×900	2100×900
Bed Size(mm)	2400×950	2400×1200	2400×1200
