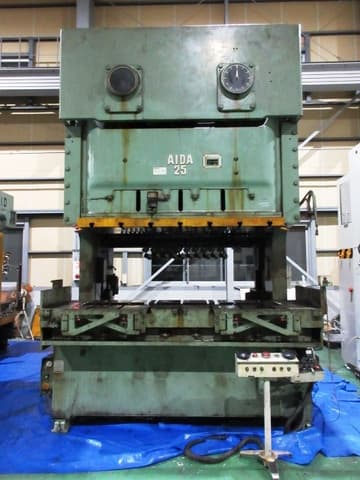

Mechanical Press AIDA NC2-25(2)-B
250T1985AIDA
Japan
Basic Information
- Management No.
- mtp1882
- Drive Type
- Crank Motion
- Model
- NC2-25(2)-B
- Year
- 1985
- Press Type
- C-Type Mechanical Press
- Capacity(ton)
- 250
- Stroke Length(mm)
- 280
- SPM
- 25-35
- Die Height(mm)
- 550
- Slide Adjustment(mm)
- 120
- Slide Area(mm)
- 2100x700
- Bolster Area(mm)
- 2700x920
- Main Motor(kw)
- 30
- Light Safety Device
- Yes
| Management No. | mtp1882 |
|---|---|
| Drive Type | Crank Motion |
| Model | NC2-25(2)-B |
| Year | 1985 |
| Press Type | C-Type Mechanical Press |
| Capacity(ton) | 250 |
| Stroke Length(mm) | 280 |
| SPM | 25-35 |
| Die Height(mm) | 550 |
| Slide Adjustment(mm) | 120 |
| Slide Area(mm) | 2100x700 |
| Bolster Area(mm) | 2700x920 |
| Main Motor(kw) | 30 |
| Light Safety Device | Yes |
Feel Free to Contact Us
Prices vary depending on conditions such as as-is delivery or post-maintenance delivery. Please contact us for details.
