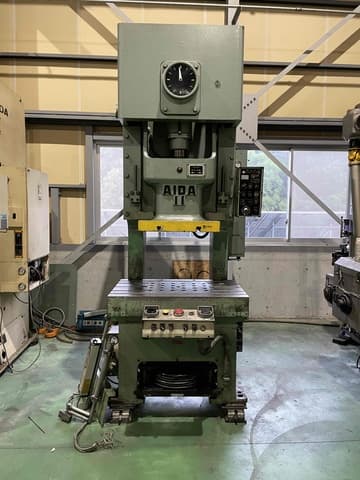

Mechanical Press AIDA NC1-11(2)-B
110T1982AIDA
Japan
Basic Information
- Management No.
- mtp1791
- Drive Type
- Crank Motion
- Model
- NC1-11(2)-B
- Year
- 1982
- Press Type
- C-Type Mechanical Press
- Capacity(ton)
- 110
- Stroke Length(mm)
- 180
- SPM
- 35-65
- Die Height(mm)
- 350
- Slide Adjustment(mm)
- 90
- Slide Area(mm)
- 630x520
- Bolster Area(mm)
- 1070x680
- Light Safety Device
- Yes
| Management No. | mtp1791 |
|---|---|
| Drive Type | Crank Motion |
| Model | NC1-11(2)-B |
| Year | 1982 |
| Press Type | C-Type Mechanical Press |
| Capacity(ton) | 110 |
| Stroke Length(mm) | 180 |
| SPM | 35-65 |
| Die Height(mm) | 350 |
| Slide Adjustment(mm) | 90 |
| Slide Area(mm) | 630x520 |
| Bolster Area(mm) | 1070x680 |
| Light Safety Device | Yes |
Feel Free to Contact Us
Prices vary depending on conditions such as as-is delivery or post-maintenance delivery. Please contact us for details.
