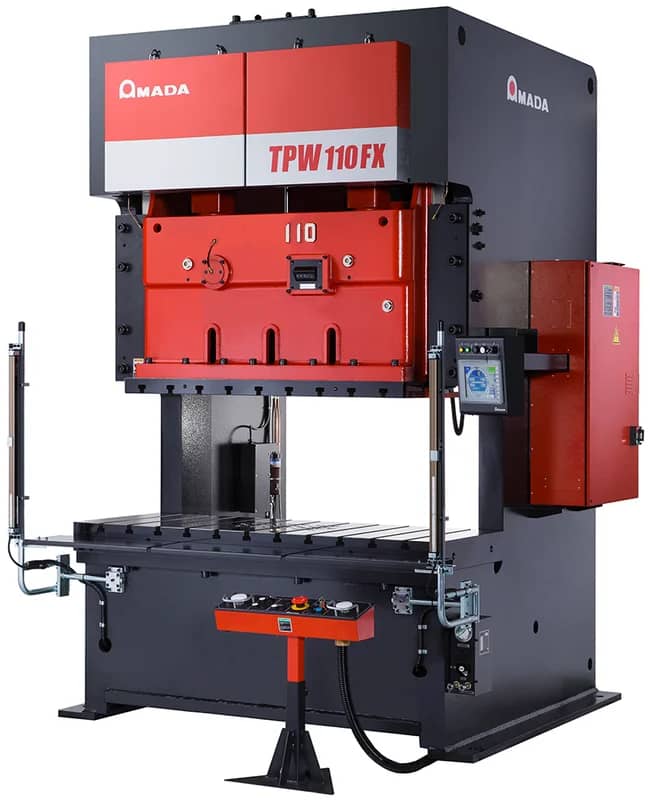

AMADA TPW-FX

The basic model of wide-bed presses. A two-point crank press with a planetary-gear transmission that puts machining accuracy and versatility first, delivering stable continuous production.

Progressive ProcessingSingle-Shot ProcessingGeneral Purpose

Specifications

TPW-110FX

Type: General purpose
Frame Shape: C/BI
Capacity(kN): 1100
Stroke(mm): 180
SPM(spm): 35〜65
Die Height(mm): 400
Die Height Adjustment(mm): 90
Slide Size(mm): 1400×500
Bed Size(mm): 1800×700

TPW-110FX
Type	General purpose
Frame Shape	C/BI
Capacity(kN)	1100
Stroke(mm)	180
SPM(spm)	35〜65
Die Height(mm)	400
Die Height Adjustment(mm)	90
Slide Size(mm)	1400×500
Bed Size(mm)	1800×700

TPW-110FX

Type: Progressive
Frame Shape: C/BI
Capacity(kN): 1100
Stroke(mm): 110
SPM(spm): 55〜110
Die Height(mm): 350
Die Height Adjustment(mm): 90
Slide Size(mm): 1400×500
Bed Size(mm): 1800×540

TPW-110FX
Type	Progressive
Frame Shape	C/BI
Capacity(kN)	1100
Stroke(mm)	110
SPM(spm)	55〜110
Die Height(mm)	350
Die Height Adjustment(mm)	90
Slide Size(mm)	1400×500
Bed Size(mm)	1800×540

TPW-110FX

Type: Drawing
Frame Shape: C/BI
Capacity(kN): 1100
Stroke(mm): 230
SPM(spm): 25〜50
Die Height(mm): 450
Die Height Adjustment(mm): 90
Slide Size(mm): 1400×500
Bed Size(mm): 1800×700

TPW-110FX
Type	Drawing
Frame Shape	C/BI
Capacity(kN)	1100
Stroke(mm)	230
SPM(spm)	25〜50
Die Height(mm)	450
Die Height Adjustment(mm)	90
Slide Size(mm)	1400×500
Bed Size(mm)	1800×700

TPW-150FX

Type: General purpose
Frame Shape: C/BI
Capacity(kN): 1500
Stroke(mm): 200
SPM(spm): 30〜55
Die Height(mm): 450
Die Height Adjustment(mm): 100
Slide Size(mm): 1600×550
Bed Size(mm): 2000×760

TPW-150FX
Type	General purpose
Frame Shape	C/BI
Capacity(kN)	1500
Stroke(mm)	200
SPM(spm)	30〜55
Die Height(mm)	450
Die Height Adjustment(mm)	100
Slide Size(mm)	1600×550
Bed Size(mm)	2000×760

TPW-150FX

Type: Progressive
Frame Shape: C/BI
Capacity(kN): 1500
Stroke(mm): 130
SPM(spm): 45〜90
Die Height(mm): 400
Die Height Adjustment(mm): 100
Slide Size(mm): 1600×550
Bed Size(mm): 2000×620

TPW-150FX
Type	Progressive
Frame Shape	C/BI
Capacity(kN)	1500
Stroke(mm)	130
SPM(spm)	45〜90
Die Height(mm)	400
Die Height Adjustment(mm)	100
Slide Size(mm)	1600×550
Bed Size(mm)	2000×620

TPW-150FX

Type: Drawing
Frame Shape: C/BI
Capacity(kN): 1500
Stroke(mm): 250
SPM(spm): 25〜45
Die Height(mm): 500
Die Height Adjustment(mm): 100
Slide Size(mm): 1600×550
Bed Size(mm): 2000×760

TPW-150FX
Type	Drawing
Frame Shape	C/BI
Capacity(kN)	1500
Stroke(mm)	250
SPM(spm)	25〜45
Die Height(mm)	500
Die Height Adjustment(mm)	100
Slide Size(mm)	1600×550
Bed Size(mm)	2000×760

TPW-200FX

Type: General purpose
Frame Shape: C/BI/BO
Capacity(kN): 2000
Stroke(mm): 250
SPM(spm): 25〜45
Die Height(mm): 500
Die Height Adjustment(mm): 110
Slide Size(mm): 1850×650
Bed Size(mm): 2400×850

TPW-200FX
Type	General purpose
Frame Shape	C/BI/BO
Capacity(kN)	2000
Stroke(mm)	250
SPM(spm)	25〜45
Die Height(mm)	500
Die Height Adjustment(mm)	110
Slide Size(mm)	1850×650
Bed Size(mm)	2400×850

TPW-200FX

Type: Progressive
Frame Shape: C/BI/BO
Capacity(kN): 2000
Stroke(mm): 150
SPM(spm): 40〜75
Die Height(mm): 450
Die Height Adjustment(mm): 110
Slide Size(mm): 1850×650
Bed Size(mm): 2400×700

TPW-200FX
Type	Progressive
Frame Shape	C/BI/BO
Capacity(kN)	2000
Stroke(mm)	150
SPM(spm)	40〜75
Die Height(mm)	450
Die Height Adjustment(mm)	110
Slide Size(mm)	1850×650
Bed Size(mm)	2400×700

TPW-200FX

Type: Drawing
Frame Shape: C/BI/BO
Capacity(kN): 2000
Stroke(mm): 300
SPM(spm): 20〜35
Die Height(mm): 550
Die Height Adjustment(mm): 110
Slide Size(mm): 1850×650
Bed Size(mm): 2400×850

TPW-200FX
Type	Drawing
Frame Shape	C/BI/BO
Capacity(kN)	2000
Stroke(mm)	300
SPM(spm)	20〜35
Die Height(mm)	550
Die Height Adjustment(mm)	110
Slide Size(mm)	1850×650
Bed Size(mm)	2400×850

TPW-250FX

Type: Drawing
Frame Shape: C/BI/BO
Capacity(kN): 2500
Stroke(mm): 300
SPM(spm): 15〜30
Die Height(mm): 600
Die Height Adjustment(mm): 120
Slide Size(mm): 2100×700
Bed Size(mm): 2700×950

TPW-250FX
Type	Drawing
Frame Shape	C/BI/BO
Capacity(kN)	2500
Stroke(mm)	300
SPM(spm)	15〜30
Die Height(mm)	600
Die Height Adjustment(mm)	120
Slide Size(mm)	2100×700
Bed Size(mm)	2700×950

TPW-250FX

Type: Progressive
Frame Shape: C/BI/BO
Capacity(kN): 2500
Stroke(mm): 170
SPM(spm): 30〜60
Die Height(mm): 450
Die Height Adjustment(mm): 120
Slide Size(mm): 2100×700
Bed Size(mm): 2700×780

TPW-250FX
Type	Progressive
Frame Shape	C/BI/BO
Capacity(kN)	2500
Stroke(mm)	170
SPM(spm)	30〜60
Die Height(mm)	450
Die Height Adjustment(mm)	120
Slide Size(mm)	2100×700
Bed Size(mm)	2700×780

TPW-250FX

Type: General purpose
Frame Shape: C/BI/BO
Capacity(kN): 2500
Stroke(mm): 250
SPM(spm): 20〜40
Die Height(mm): 550
Die Height Adjustment(mm): 120
Slide Size(mm): 2100×700
Bed Size(mm): 2700×950

TPW-250FX
Type	General purpose
Frame Shape	C/BI/BO
Capacity(kN)	2500
Stroke(mm)	250
SPM(spm)	20〜40
Die Height(mm)	550
Die Height Adjustment(mm)	120
Slide Size(mm)	2100×700
Bed Size(mm)	2700×950

Model	TPW-110FX			TPW-150FX
Type	General purpose	Progressive	Drawing	General purpose	Progressive	Drawing
Frame Shape	C/BI	C/BI	C/BI	C/BI	C/BI	C/BI
Capacity(kN)	1100	1100	1100	1500	1500	1500
Stroke(mm)	180	110	230	200	130	250
SPM(spm)	35〜65	55〜110	25〜50	30〜55	45〜90	25〜45
Die Height(mm)	400	350	450	450	400	500
Die Height Adjustment(mm)	90	90	90	100	100	100
Slide Size(mm)	1400×500	1400×500	1400×500	1600×550	1600×550	1600×550
Bed Size(mm)	1800×700	1800×540	1800×700	2000×760	2000×620	2000×760

Model	TPW-200FX			TPW-250FX
Type	General purpose	Progressive	Drawing	Drawing	Progressive	General purpose
Frame Shape	C/BI/BO	C/BI/BO	C/BI/BO	C/BI/BO	C/BI/BO	C/BI/BO
Capacity(kN)	2000	2000	2000	2500	2500	2500
Stroke(mm)	250	150	300	300	170	250
SPM(spm)	25〜45	40〜75	20〜35	15〜30	30〜60	20〜40
Die Height(mm)	500	450	550	600	450	550
Die Height Adjustment(mm)	110	110	110	120	120	120
Slide Size(mm)	1850×650	1850×650	1850×650	2100×700	2100×700	2100×700
Bed Size(mm)	2400×850	2400×700	2400×850	2700×950	2700×780	2700×950
