New Press Machines

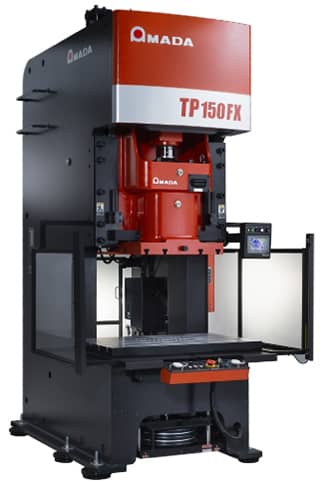

AMADA TP-FX
A wide lineup for every need. A long-selling crank press with six-face slide guides that puts machining accuracy and versatility first, with a colour LCD control unit as standard and eco functions that cut power consumption.
Single-Shot Processing
Specifications
TP-15FX
- Type
- General purpose
- Frame Shape
- C
- Capacity(kN)
- 150
- Stroke(mm)
- 60
- SPM(spm)
- 70〜140
- Die Height(mm)
- 200
- Die Height Adjustment(mm)
- 40
- Slide Size(mm)
- 220×150
- Bed Size(mm)
- 500×300
| Type | General purpose |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 150 |
| Stroke(mm) | 60 |
| SPM(spm) | 70〜140 |
| Die Height(mm) | 200 |
| Die Height Adjustment(mm) | 40 |
| Slide Size(mm) | 220×150 |
| Bed Size(mm) | 500×300 |
TP-25FX
- Type
- General purpose
- Frame Shape
- C
- Capacity(kN)
- 250
- Stroke(mm)
- 80
- SPM(spm)
- 70〜120
- Die Height(mm)
- 220
- Die Height Adjustment(mm)
- 50
- Slide Size(mm)
- 250×200
- Bed Size(mm)
- 550×300
| Type | General purpose |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 250 |
| Stroke(mm) | 80 |
| SPM(spm) | 70〜120 |
| Die Height(mm) | 220 |
| Die Height Adjustment(mm) | 50 |
| Slide Size(mm) | 250×200 |
| Bed Size(mm) | 550×300 |
TP-35FX
- Type
- General purpose
- Frame Shape
- C
- Capacity(kN)
- 350
- Stroke(mm)
- 110
- SPM(spm)
- 60〜100
- Die Height(mm)
- 250
- Die Height Adjustment(mm)
- 55
- Slide Size(mm)
- 350×300
- Bed Size(mm)
- 700×400
| Type | General purpose |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 350 |
| Stroke(mm) | 110 |
| SPM(spm) | 60〜100 |
| Die Height(mm) | 250 |
| Die Height Adjustment(mm) | 55 |
| Slide Size(mm) | 350×300 |
| Bed Size(mm) | 700×400 |
TP-45FX
- Type
- General purpose
- Frame Shape
- C
- Capacity(kN)
- 450
- Stroke(mm)
- 100
- SPM(spm)
- 55〜100
- Die Height(mm)
- 255
- Die Height Adjustment(mm)
- 60
- Slide Size(mm)
- 400×350
- Bed Size(mm)
- 800×450
| Type | General purpose |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 450 |
| Stroke(mm) | 100 |
| SPM(spm) | 55〜100 |
| Die Height(mm) | 255 |
| Die Height Adjustment(mm) | 60 |
| Slide Size(mm) | 400×350 |
| Bed Size(mm) | 800×450 |
TP-45FX
- Type
- Drawing
- Frame Shape
- C
- Capacity(kN)
- 450
- Stroke(mm)
- 140
- SPM(spm)
- 55〜100
- Die Height(mm)
- 290
- Die Height Adjustment(mm)
- 60
- Slide Size(mm)
- 400×350
- Bed Size(mm)
- 800×450
| Type | Drawing |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 450 |
| Stroke(mm) | 140 |
| SPM(spm) | 55〜100 |
| Die Height(mm) | 290 |
| Die Height Adjustment(mm) | 60 |
| Slide Size(mm) | 400×350 |
| Bed Size(mm) | 800×450 |
TP-60FX
- Type
- General purpose
- Frame Shape
- C
- Capacity(kN)
- 600
- Stroke(mm)
- 120
- SPM(spm)
- 45〜85
- Die Height(mm)
- 290
- Die Height Adjustment(mm)
- 70
- Slide Size(mm)
- 500×400
- Bed Size(mm)
- 920×550
| Type | General purpose |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 600 |
| Stroke(mm) | 120 |
| SPM(spm) | 45〜85 |
| Die Height(mm) | 290 |
| Die Height Adjustment(mm) | 70 |
| Slide Size(mm) | 500×400 |
| Bed Size(mm) | 920×550 |
TP-60FX
- Type
- Drawing
- Frame Shape
- C
- Capacity(kN)
- 600
- Stroke(mm)
- 160
- SPM(spm)
- 45〜85
- Die Height(mm)
- 335
- Die Height Adjustment(mm)
- 70
- Slide Size(mm)
- 500×400
- Bed Size(mm)
- 920×550
| Type | Drawing |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 600 |
| Stroke(mm) | 160 |
| SPM(spm) | 45〜85 |
| Die Height(mm) | 335 |
| Die Height Adjustment(mm) | 70 |
| Slide Size(mm) | 500×400 |
| Bed Size(mm) | 920×550 |
TP-80FX
- Type
- Drawing
- Frame Shape
- C
- Capacity(kN)
- 800
- Stroke(mm)
- 180
- SPM(spm)
- 40〜75
- Die Height(mm)
- 350
- Die Height Adjustment(mm)
- 80
- Slide Size(mm)
- 550×450
- Bed Size(mm)
- 1030×600
| Type | Drawing |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 800 |
| Stroke(mm) | 180 |
| SPM(spm) | 40〜75 |
| Die Height(mm) | 350 |
| Die Height Adjustment(mm) | 80 |
| Slide Size(mm) | 550×450 |
| Bed Size(mm) | 1030×600 |
TP-80FX
- Type
- General purpose
- Frame Shape
- C
- Capacity(kN)
- 800
- Stroke(mm)
- 130
- SPM(spm)
- 40〜75
- Die Height(mm)
- 320
- Die Height Adjustment(mm)
- 80
- Slide Size(mm)
- 550×450
- Bed Size(mm)
- 1030×600
| Type | General purpose |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 800 |
| Stroke(mm) | 130 |
| SPM(spm) | 40〜75 |
| Die Height(mm) | 320 |
| Die Height Adjustment(mm) | 80 |
| Slide Size(mm) | 550×450 |
| Bed Size(mm) | 1030×600 |
TP-110FX
- Type
- General purpose
- Frame Shape
- C
- Capacity(kN)
- 1100
- Stroke(mm)
- 150
- SPM(spm)
- 35〜65
- Die Height(mm)
- 365
- Die Height Adjustment(mm)
- 100
- Slide Size(mm)
- 600×500
- Bed Size(mm)
- 1100×700
| Type | General purpose |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 1100 |
| Stroke(mm) | 150 |
| SPM(spm) | 35〜65 |
| Die Height(mm) | 365 |
| Die Height Adjustment(mm) | 100 |
| Slide Size(mm) | 600×500 |
| Bed Size(mm) | 1100×700 |
TP-110FX
- Type
- Drawing
- Frame Shape
- C
- Capacity(kN)
- 1100
- Stroke(mm)
- 200
- SPM(spm)
- 30〜55
- Die Height(mm)
- 390
- Die Height Adjustment(mm)
- 100
- Slide Size(mm)
- 600×500
- Bed Size(mm)
- 1100×700
| Type | Drawing |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 1100 |
| Stroke(mm) | 200 |
| SPM(spm) | 30〜55 |
| Die Height(mm) | 390 |
| Die Height Adjustment(mm) | 100 |
| Slide Size(mm) | 600×500 |
| Bed Size(mm) | 1100×700 |
TP-150FX
- Type
- Drawing
- Frame Shape
- C
- Capacity(kN)
- 1500
- Stroke(mm)
- 225
- SPM(spm)
- 25〜45
- Die Height(mm)
- 430
- Die Height Adjustment(mm)
- 100
- Slide Size(mm)
- 700×550
- Bed Size(mm)
- 1250×750
| Type | Drawing |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 1500 |
| Stroke(mm) | 225 |
| SPM(spm) | 25〜45 |
| Die Height(mm) | 430 |
| Die Height Adjustment(mm) | 100 |
| Slide Size(mm) | 700×550 |
| Bed Size(mm) | 1250×750 |
TP-150FX
- Type
- General purpose
- Frame Shape
- C
- Capacity(kN)
- 1500
- Stroke(mm)
- 175
- SPM(spm)
- 30〜55
- Die Height(mm)
- 390
- Die Height Adjustment(mm)
- 100
- Slide Size(mm)
- 700×550
- Bed Size(mm)
- 1250×750
| Type | General purpose |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 1500 |
| Stroke(mm) | 175 |
| SPM(spm) | 30〜55 |
| Die Height(mm) | 390 |
| Die Height Adjustment(mm) | 100 |
| Slide Size(mm) | 700×550 |
| Bed Size(mm) | 1250×750 |
TP-200FX
- Type
- Drawing
- Frame Shape
- C
- Capacity(kN)
- 2000
- Stroke(mm)
- 250
- SPM(spm)
- 25〜45
- Die Height(mm)
- 460
- Die Height Adjustment(mm)
- 110
- Slide Size(mm)
- 850×630
- Bed Size(mm)
- 1450×850
| Type | Drawing |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 2000 |
| Stroke(mm) | 250 |
| SPM(spm) | 25〜45 |
| Die Height(mm) | 460 |
| Die Height Adjustment(mm) | 110 |
| Slide Size(mm) | 850×630 |
| Bed Size(mm) | 1450×850 |
TP-200FX
- Type
- General purpose
- Frame Shape
- C
- Capacity(kN)
- 2000
- Stroke(mm)
- 200
- SPM(spm)
- 30〜55
- Die Height(mm)
- 420
- Die Height Adjustment(mm)
- 110
- Slide Size(mm)
- 850×630
- Bed Size(mm)
- 1450×850
| Type | General purpose |
|---|---|
| Frame Shape | C |
| Capacity(kN) | 2000 |
| Stroke(mm) | 200 |
| SPM(spm) | 30〜55 |
| Die Height(mm) | 420 |
| Die Height Adjustment(mm) | 110 |
| Slide Size(mm) | 850×630 |
| Bed Size(mm) | 1450×850 |
| Model | TP-15FX | TP-25FX | TP-35FX | TP-45FX | TP-60FX | ||
|---|---|---|---|---|---|---|---|
| Type | General purpose | General purpose | General purpose | General purpose | Drawing | General purpose | Drawing |
| Frame Shape | C | C | C | C | C | C | C |
| Capacity(kN) | 150 | 250 | 350 | 450 | 450 | 600 | 600 |
| Stroke(mm) | 60 | 80 | 110 | 100 | 140 | 120 | 160 |
| SPM(spm) | 70〜140 | 70〜120 | 60〜100 | 55〜100 | 55〜100 | 45〜85 | 45〜85 |
| Die Height(mm) | 200 | 220 | 250 | 255 | 290 | 290 | 335 |
| Die Height Adjustment(mm) | 40 | 50 | 55 | 60 | 60 | 70 | 70 |
| Slide Size(mm) | 220×150 | 250×200 | 350×300 | 400×350 | 400×350 | 500×400 | 500×400 |
| Bed Size(mm) | 500×300 | 550×300 | 700×400 | 800×450 | 800×450 | 920×550 | 920×550 |
| Model | TP-80FX | TP-110FX | TP-150FX | |||
|---|---|---|---|---|---|---|
| Type | Drawing | General purpose | General purpose | Drawing | Drawing | General purpose |
| Frame Shape | C | C | C | C | C | C |
| Capacity(kN) | 800 | 800 | 1100 | 1100 | 1500 | 1500 |
| Stroke(mm) | 180 | 130 | 150 | 200 | 225 | 175 |
| SPM(spm) | 40〜75 | 40〜75 | 35〜65 | 30〜55 | 25〜45 | 30〜55 |
| Die Height(mm) | 350 | 320 | 365 | 390 | 430 | 390 |
| Die Height Adjustment(mm) | 80 | 80 | 100 | 100 | 100 | 100 |
| Slide Size(mm) | 550×450 | 550×450 | 600×500 | 600×500 | 700×550 | 700×550 |
| Bed Size(mm) | 1030×600 | 1030×600 | 1100×700 | 1100×700 | 1250×750 | 1250×750 |
| Model | TP-200FX | |
|---|---|---|
| Type | Drawing | General purpose |
| Frame Shape | C | C |
| Capacity(kN) | 2000 | 2000 |
| Stroke(mm) | 250 | 200 |
| SPM(spm) | 25〜45 | 30〜55 |
| Die Height(mm) | 460 | 420 |
| Die Height Adjustment(mm) | 110 | 110 |
| Slide Size(mm) | 850×630 | 850×630 |
| Bed Size(mm) | 1450×850 | 1450×850 |
