New Press Machines

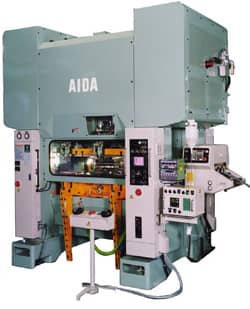

AIDA UMX
Delivers outstanding performance in high-precision progressive processing of thin and small parts. A highly practical press that satisfies both functionality and cost-efficiency for precision press component production.
Progressive Processing
Specifications
UMX-1100 (1)
- Frame Shape
- Straight Side
- Capacity(kN)
- 1100
- Stroke(mm)
- 60
- SPM(spm)
- 70〜200
- Die Height(mm)
- 360
- Slide Size(mm)
- 1200×520
- Bed Size(mm)
- 1200×550
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 1100 |
| Stroke(mm) | 60 |
| SPM(spm) | 70〜200 |
| Die Height(mm) | 360 |
| Slide Size(mm) | 1200×520 |
| Bed Size(mm) | 1200×550 |
UMX-1100 (2)
- Frame Shape
- Straight Side
- Capacity(kN)
- 1100
- Stroke(mm)
- 80
- SPM(spm)
- 60〜180
- Die Height(mm)
- 350
- Slide Size(mm)
- 1200×520
- Bed Size(mm)
- 1200×550
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 1100 |
| Stroke(mm) | 80 |
| SPM(spm) | 60〜180 |
| Die Height(mm) | 350 |
| Slide Size(mm) | 1200×520 |
| Bed Size(mm) | 1200×550 |
| Model | UMX-1100 (1) | UMX-1100 (2) |
|---|---|---|
| Frame Shape | Straight Side | Straight Side |
| Capacity(kN) | 1100 | 1100 |
| Stroke(mm) | 60 | 80 |
| SPM(spm) | 70〜200 | 60〜180 |
| Die Height(mm) | 360 | 350 |
| Die Height Adjustment(mm) | - | - |
| Slide Size(mm) | 1200×520 | 1200×520 |
| Bed Size(mm) | 1200×550 | 1200×550 |
