New Press Machines

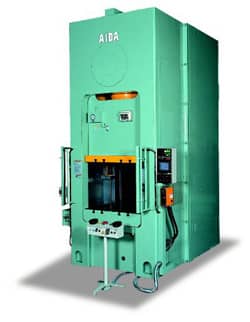

AIDA S1-E
Further expanding the capabilities for thick plate processing. It successfully addresses the three key challenges of thick material processing: die life, vibration & noise reduction, and high precision with high productivity.
Heavy StampingBlanking
Specifications
S1-3000E
- Frame Shape
- Straight Side
- Capacity(kN)
- 3000
- Stroke(mm)
- 250
- SPM(spm)
- 15〜40
- Die Height(mm)
- 570
- Die Height Adjustment(mm)
- 120
- Slide Size(mm)
- 1000×900
- Bed Size(mm)
- 1000×985
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 3000 |
| Stroke(mm) | 250 |
| SPM(spm) | 15〜40 |
| Die Height(mm) | 570 |
| Die Height Adjustment(mm) | 120 |
| Slide Size(mm) | 1000×900 |
| Bed Size(mm) | 1000×985 |
S1-5000E
- Frame Shape
- Straight Side
- Capacity(kN)
- 5000
- Stroke(mm)
- 300
- SPM(spm)
- 15〜35
- Die Height(mm)
- 650
- Die Height Adjustment(mm)
- 120
- Slide Size(mm)
- 1200×1100
- Bed Size(mm)
- 1200×1215
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 5000 |
| Stroke(mm) | 300 |
| SPM(spm) | 15〜35 |
| Die Height(mm) | 650 |
| Die Height Adjustment(mm) | 120 |
| Slide Size(mm) | 1200×1100 |
| Bed Size(mm) | 1200×1215 |
| Model | S1-3000E | S1-5000E |
|---|---|---|
| Frame Shape | Straight Side | Straight Side |
| Capacity(kN) | 3000 | 5000 |
| Stroke(mm) | 250 | 300 |
| SPM(spm) | 15〜40 | 15〜35 |
| Die Height(mm) | 570 | 650 |
| Die Height Adjustment(mm) | 120 | 120 |
| Slide Size(mm) | 1000×900 | 1200×1100 |
| Bed Size(mm) | 1000×985 | 1200×1215 |
