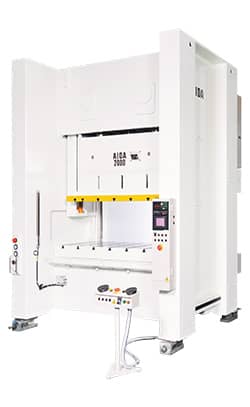

AIDA NS2

High-grade wide-area basic machine for the new era. Achieves high-precision, high value-added processing. The integrated straight-side frame eliminates die opening, and a forced-circulation lubrication system is adopted.

Progressive Processing

Specifications

NS2-1100(1)

Frame Shape: Straight Side
Capacity(kN): 1100
Stroke(mm): 110
SPM(spm): 50〜110
Die Height(mm): 350
Slide Size(mm): 1360×520
Bed Size(mm): 1660×680

NS2-1100(1)
Frame Shape	Straight Side
Capacity(kN)	1100
Stroke(mm)	110
SPM(spm)	50〜110
Die Height(mm)	350
Slide Size(mm)	1360×520
Bed Size(mm)	1660×680

NS2-1100(2)

Frame Shape: Straight Side
Capacity(kN): 1100
Stroke(mm): 180
SPM(spm): 35〜70
Die Height(mm): 400
Slide Size(mm): 1360×520
Bed Size(mm): 1660×680

NS2-1100(2)
Frame Shape	Straight Side
Capacity(kN)	1100
Stroke(mm)	180
SPM(spm)	35〜70
Die Height(mm)	400
Slide Size(mm)	1360×520
Bed Size(mm)	1660×680

NS2-1600(1)

Frame Shape: Straight Side
Capacity(kN): 1600
Stroke(mm): 130
SPM(spm): 40〜90
Die Height(mm): 400
Slide Size(mm): 1500×580
Bed Size(mm): 1800×760

NS2-1600(1)
Frame Shape	Straight Side
Capacity(kN)	1600
Stroke(mm)	130
SPM(spm)	40〜90
Die Height(mm)	400
Slide Size(mm)	1500×580
Bed Size(mm)	1800×760

NS2-1600(2)

Frame Shape: Straight Side
Capacity(kN): 1600
Stroke(mm): 200
SPM(spm): 30〜60
Die Height(mm): 450
Slide Size(mm): 1500×580
Bed Size(mm): 1800×760

NS2-1600(2)
Frame Shape	Straight Side
Capacity(kN)	1600
Stroke(mm)	200
SPM(spm)	30〜60
Die Height(mm)	450
Slide Size(mm)	1500×580
Bed Size(mm)	1800×760

NS2-2000(1)

Frame Shape: Straight Side
Capacity(kN): 2000
Stroke(mm): 150
SPM(spm): 35〜75
Die Height(mm): 450
Slide Size(mm): 1850×650
Bed Size(mm): 2150×840

NS2-2000(1)
Frame Shape	Straight Side
Capacity(kN)	2000
Stroke(mm)	150
SPM(spm)	35〜75
Die Height(mm)	450
Slide Size(mm)	1850×650
Bed Size(mm)	2150×840

NS2-2000(2)

Frame Shape: Straight Side
Capacity(kN): 2000
Stroke(mm): 250
SPM(spm): 25〜50
Die Height(mm): 500
Slide Size(mm): 1850×650
Bed Size(mm): 2150×840

NS2-2000(2)
Frame Shape	Straight Side
Capacity(kN)	2000
Stroke(mm)	250
SPM(spm)	25〜50
Die Height(mm)	500
Slide Size(mm)	1850×650
Bed Size(mm)	2150×840

NS2-2500(1)

Frame Shape: Straight Side
Capacity(kN): 2500
Stroke(mm): 170
SPM(spm): 25〜60
Die Height(mm): 450
Slide Size(mm): 2100×700
Bed Size(mm): 2400×920

NS2-2500(1)
Frame Shape	Straight Side
Capacity(kN)	2500
Stroke(mm)	170
SPM(spm)	25〜60
Die Height(mm)	450
Slide Size(mm)	2100×700
Bed Size(mm)	2400×920

NS2-2500(2)

Frame Shape: Straight Side
Capacity(kN): 2500
Stroke(mm): 280
SPM(spm): 20〜40
Die Height(mm): 550
Slide Size(mm): 2100×700
Bed Size(mm): 2400×920

NS2-2500(2)
Frame Shape	Straight Side
Capacity(kN)	2500
Stroke(mm)	280
SPM(spm)	20〜40
Die Height(mm)	550
Slide Size(mm)	2100×700
Bed Size(mm)	2400×920

NS2-3000(2)

Frame Shape: Straight Side
Capacity(kN): 3000
Stroke(mm): 300
SPM(spm): 15〜35
Die Height(mm): 650
Slide Size(mm): 2400×900
Bed Size(mm): 2400×1200

NS2-3000(2)
Frame Shape	Straight Side
Capacity(kN)	3000
Stroke(mm)	300
SPM(spm)	15〜35
Die Height(mm)	650
Slide Size(mm)	2400×900
Bed Size(mm)	2400×1200

NS2-3000(1)

Frame Shape: Straight Side
Capacity(kN): 3000
Stroke(mm): 200
SPM(spm): 20〜50
Die Height(mm): 600
Slide Size(mm): 2400×900
Bed Size(mm): 2400×1200

NS2-3000(1)
Frame Shape	Straight Side
Capacity(kN)	3000
Stroke(mm)	200
SPM(spm)	20〜50
Die Height(mm)	600
Slide Size(mm)	2400×900
Bed Size(mm)	2400×1200

Model	NS2-1100(1)	NS2-1100(2)	NS2-1600(1)	NS2-1600(2)	NS2-2000(1)	NS2-2000(2)	NS2-2500(1)
Frame Shape	Straight Side	Straight Side	Straight Side	Straight Side	Straight Side	Straight Side	Straight Side
Capacity(kN)	1100	1100	1600	1600	2000	2000	2500
Stroke(mm)	110	180	130	200	150	250	170
SPM(spm)	50〜110	35〜70	40〜90	30〜60	35〜75	25〜50	25〜60
Die Height(mm)	350	400	400	450	450	500	450
Die Height Adjustment(mm)	-	-	-	-	-	-	-
Slide Size(mm)	1360×520	1360×520	1500×580	1500×580	1850×650	1850×650	2100×700
Bed Size(mm)	1660×680	1660×680	1800×760	1800×760	2150×840	2150×840	2400×920

Model	NS2-2500(2)	NS2-3000(2)	NS2-3000(1)
Frame Shape	Straight Side	Straight Side	Straight Side
Capacity(kN)	2500	3000	3000
Stroke(mm)	280	300	200
SPM(spm)	20〜40	15〜35	20〜50
Die Height(mm)	550	650	600
Die Height Adjustment(mm)	-	-	-
Slide Size(mm)	2100×700	2400×900	2400×900
Bed Size(mm)	2400×920	2400×1200	2400×1200
