New Press Machines

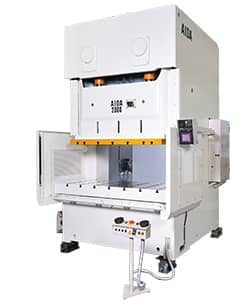

AIDA NC2-E

Name: MEGA TECH
Address: 107/5 Thetsaban Samrong Tai 3 Rd, Samrong Klang, Phra Pradaeng, Samut Prakan, 10130, TH
Telephone: +66-2-380-0367
Price range: $$

High-grade, wide-area basic press machine. A press with a high-rigidity frame and a counter-rotation gear mechanism that offers excellent resistance to eccentric loads.

Progressive Processing

Specifications

NC2-1100(1)E

Frame Shape: C-Frame
Capacity(kN): 1100
Stroke(mm): 110
SPM(spm): 50〜100
Die Height(mm): 350
Slide Size(mm): 1360×520
Bed Size(mm): 1880×520

NC2-1100(1)E
Frame Shape	C-Frame
Capacity(kN)	1100
Stroke(mm)	110
SPM(spm)	50〜100
Die Height(mm)	350
Slide Size(mm)	1360×520
Bed Size(mm)	1880×520

NC2-1100(2)E

Frame Shape: C-Frame
Capacity(kN): 1100
Stroke(mm): 180
SPM(spm): 35〜65
Die Height(mm): 400
Slide Size(mm): 1360×520
Bed Size(mm): 1880×680

NC2-1100(2)E
Frame Shape	C-Frame
Capacity(kN)	1100
Stroke(mm)	180
SPM(spm)	35〜65
Die Height(mm)	400
Slide Size(mm)	1360×520
Bed Size(mm)	1880×680

NC2-1600(2)E

Frame Shape: C-Frame
Capacity(kN): 1600
Stroke(mm): 200
SPM(spm): 30〜55
Die Height(mm): 450
Slide Size(mm): 1500×580
Bed Size(mm): 2040×760

NC2-1600(2)E
Frame Shape	C-Frame
Capacity(kN)	1600
Stroke(mm)	200
SPM(spm)	30〜55
Die Height(mm)	450
Slide Size(mm)	1500×580
Bed Size(mm)	2040×760

NC2-1600(1)E

Frame Shape: C-Frame
Capacity(kN): 1600
Stroke(mm): 130
SPM(spm): 40〜85
Die Height(mm): 400
Slide Size(mm): 1500×580
Bed Size(mm): 2040×600

NC2-1600(1)E
Frame Shape	C-Frame
Capacity(kN)	1600
Stroke(mm)	130
SPM(spm)	40〜85
Die Height(mm)	400
Slide Size(mm)	1500×580
Bed Size(mm)	2040×600

NC2-2000(1)E

Frame Shape: C-Frame
Capacity(kN): 2000
Stroke(mm): 150
SPM(spm): 35〜70
Die Height(mm): 450
Slide Size(mm): 1850×650
Bed Size(mm): 2420×680

NC2-2000(1)E
Frame Shape	C-Frame
Capacity(kN)	2000
Stroke(mm)	150
SPM(spm)	35〜70
Die Height(mm)	450
Slide Size(mm)	1850×650
Bed Size(mm)	2420×680

NC2-2000(2)E

Frame Shape: C-Frame
Capacity(kN): 2000
Stroke(mm): 250
SPM(spm): 25〜45
Die Height(mm): 500
Slide Size(mm): 1850×650
Bed Size(mm): 2420×840

NC2-2000(2)E
Frame Shape	C-Frame
Capacity(kN)	2000
Stroke(mm)	250
SPM(spm)	25〜45
Die Height(mm)	500
Slide Size(mm)	1850×650
Bed Size(mm)	2420×840

NC2-2500(1)E

Frame Shape: C-Frame
Capacity(kN): 2500
Stroke(mm): 170
SPM(spm): 25〜55
Die Height(mm): 450
Slide Size(mm): 2100×700
Bed Size(mm): 2700×760

NC2-2500(1)E
Frame Shape	C-Frame
Capacity(kN)	2500
Stroke(mm)	170
SPM(spm)	25〜55
Die Height(mm)	450
Slide Size(mm)	2100×700
Bed Size(mm)	2700×760

NC2-2500(2)E

Frame Shape: C-Frame
Capacity(kN): 2500
Stroke(mm): 280
SPM(spm): 20〜35
Die Height(mm): 550
Slide Size(mm): 2100×700
Bed Size(mm): 2700×920

NC2-2500(2)E
Frame Shape	C-Frame
Capacity(kN)	2500
Stroke(mm)	280
SPM(spm)	20〜35
Die Height(mm)	550
Slide Size(mm)	2100×700
Bed Size(mm)	2700×920

Model	NC2-1100(1)E	NC2-1100(2)E	NC2-1600(2)E	NC2-1600(1)E	NC2-2000(1)E	NC2-2000(2)E	NC2-2500(1)E
Frame Shape	C-Frame	C-Frame	C-Frame	C-Frame	C-Frame	C-Frame	C-Frame
Capacity(kN)	1100	1100	1600	1600	2000	2000	2500
Stroke(mm)	110	180	200	130	150	250	170
SPM(spm)	50〜100	35〜65	30〜55	40〜85	35〜70	25〜45	25〜55
Die Height(mm)	350	400	450	400	450	500	450
Die Height Adjustment(mm)	-	-	-	-	-	-	-
Slide Size(mm)	1360×520	1360×520	1500×580	1500×580	1850×650	1850×650	2100×700
Bed Size(mm)	1880×520	1880×680	2040×760	2040×600	2420×680	2420×840	2700×760

Model	NC2-2500(2)E
Frame Shape	C-Frame
Capacity(kN)	2500
Stroke(mm)	280
SPM(spm)	20〜35
Die Height(mm)	550
Die Height Adjustment(mm)	-
Slide Size(mm)	2100×700
Bed Size(mm)	2700×920

Contact Us

For inquiries about this machine, please feel free to contact us.

Go to Contact Form
