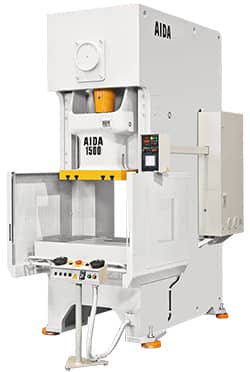

AIDA NC1-E
High-grade basic machine. Its high-rigidity frame structure minimizes frame elongation and deformation, as well as die opening during processing.
Single-Shot Processing
Specifications
NC1-350(2)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 350
- Stroke(mm)
- 120
- SPM(spm)
- 55〜105
- Die Height(mm)
- 250
- Slide Size(mm)
- 380×300
- Bed Size(mm)
- 730×380
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 350 |
| Stroke(mm) | 120 |
| SPM(spm) | 55〜105 |
| Die Height(mm) | 250 |
| Slide Size(mm) | 380×300 |
| Bed Size(mm) | 730×380 |
NC1-350(1)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 350
- Stroke(mm)
- 70
- SPM(spm)
- 90〜150
- Die Height(mm)
- 200
- Slide Size(mm)
- 380×300
- Bed Size(mm)
- 730×310
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 350 |
| Stroke(mm) | 70 |
| SPM(spm) | 90〜150 |
| Die Height(mm) | 200 |
| Slide Size(mm) | 380×300 |
| Bed Size(mm) | 730×310 |
NC1-450(1)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 450
- Stroke(mm)
- 80
- SPM(spm)
- 65〜130
- Die Height(mm)
- 250
- Slide Size(mm)
- 410×340
- Bed Size(mm)
- 810×360
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 450 |
| Stroke(mm) | 80 |
| SPM(spm) | 65〜130 |
| Die Height(mm) | 250 |
| Slide Size(mm) | 410×340 |
| Bed Size(mm) | 810×360 |
NC1-450(S)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 450
- Stroke(mm)
- 50
- SPM(spm)
- 85〜175
- Die Height(mm)
- 250
- Slide Size(mm)
- 410×340
- Bed Size(mm)
- 810×360
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 450 |
| Stroke(mm) | 50 |
| SPM(spm) | 85〜175 |
| Die Height(mm) | 250 |
| Slide Size(mm) | 410×340 |
| Bed Size(mm) | 810×360 |
NC1-450(2)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 450
- Stroke(mm)
- 120
- SPM(spm)
- 50〜95
- Die Height(mm)
- 270
- Slide Size(mm)
- 410×340
- Bed Size(mm)
- 810×440
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 450 |
| Stroke(mm) | 120 |
| SPM(spm) | 50〜95 |
| Die Height(mm) | 270 |
| Slide Size(mm) | 410×340 |
| Bed Size(mm) | 810×440 |
NC1-600(1)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 600
- Stroke(mm)
- 90
- SPM(spm)
- 60〜120
- Die Height(mm)
- 270
- Slide Size(mm)
- 480×400
- Bed Size(mm)
- 870×400
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 600 |
| Stroke(mm) | 90 |
| SPM(spm) | 60〜120 |
| Die Height(mm) | 270 |
| Slide Size(mm) | 480×400 |
| Bed Size(mm) | 870×400 |
NC1-600(2)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 600
- Stroke(mm)
- 140
- SPM(spm)
- 45〜85
- Die Height(mm)
- 300
- Slide Size(mm)
- 480×400
- Bed Size(mm)
- 870×520
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 600 |
| Stroke(mm) | 140 |
| SPM(spm) | 45〜85 |
| Die Height(mm) | 300 |
| Slide Size(mm) | 480×400 |
| Bed Size(mm) | 870×520 |
NC1-600(S)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 600
- Stroke(mm)
- 55
- SPM(spm)
- 80〜165
- Die Height(mm)
- 270
- Slide Size(mm)
- 480×400
- Bed Size(mm)
- 870×400
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 600 |
| Stroke(mm) | 55 |
| SPM(spm) | 80〜165 |
| Die Height(mm) | 270 |
| Slide Size(mm) | 480×400 |
| Bed Size(mm) | 870×400 |
NC1-800(1)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 800
- Stroke(mm)
- 100
- SPM(spm)
- 55〜110
- Die Height(mm)
- 300
- Slide Size(mm)
- 540×460
- Bed Size(mm)
- 950×460
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 800 |
| Stroke(mm) | 100 |
| SPM(spm) | 55〜110 |
| Die Height(mm) | 300 |
| Slide Size(mm) | 540×460 |
| Bed Size(mm) | 950×460 |
NC1-800(2)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 800
- Stroke(mm)
- 160
- SPM(spm)
- 40〜75
- Die Height(mm)
- 320
- Slide Size(mm)
- 540×460
- Bed Size(mm)
- 950×460
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 800 |
| Stroke(mm) | 160 |
| SPM(spm) | 40〜75 |
| Die Height(mm) | 320 |
| Slide Size(mm) | 540×460 |
| Bed Size(mm) | 950×460 |
NC1-1100(2)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 1100
- Stroke(mm)
- 180
- SPM(spm)
- 35〜65
- Die Height(mm)
- 350
- Slide Size(mm)
- 630×520
- Bed Size(mm)
- 1070×680
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 1100 |
| Stroke(mm) | 180 |
| SPM(spm) | 35〜65 |
| Die Height(mm) | 350 |
| Slide Size(mm) | 630×520 |
| Bed Size(mm) | 1070×680 |
NC1-1100(1)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 1100
- Stroke(mm)
- 110
- SPM(spm)
- 50〜100
- Die Height(mm)
- 320
- Slide Size(mm)
- 630×520
- Bed Size(mm)
- 1070×520
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 1100 |
| Stroke(mm) | 110 |
| SPM(spm) | 50〜100 |
| Die Height(mm) | 320 |
| Slide Size(mm) | 630×520 |
| Bed Size(mm) | 1070×520 |
NC1-1500(2)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 1500
- Stroke(mm)
- 200
- SPM(spm)
- 30〜55
- Die Height(mm)
- 400
- Slide Size(mm)
- 700×580
- Bed Size(mm)
- 1170×760
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 1500 |
| Stroke(mm) | 200 |
| SPM(spm) | 30〜55 |
| Die Height(mm) | 400 |
| Slide Size(mm) | 700×580 |
| Bed Size(mm) | 1170×760 |
NC1-1500(1)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 1500
- Stroke(mm)
- 130
- SPM(spm)
- 40〜85
- Die Height(mm)
- 350
- Slide Size(mm)
- 700×580
- Bed Size(mm)
- 1170×600
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 1500 |
| Stroke(mm) | 130 |
| SPM(spm) | 40〜85 |
| Die Height(mm) | 350 |
| Slide Size(mm) | 700×580 |
| Bed Size(mm) | 1170×600 |
NC1-2000(1)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 2000
- Stroke(mm)
- 160
- SPM(spm)
- 35〜70
- Die Height(mm)
- 410
- Slide Size(mm)
- 880×650
- Bed Size(mm)
- 1390×680
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 2000 |
| Stroke(mm) | 160 |
| SPM(spm) | 35〜70 |
| Die Height(mm) | 410 |
| Slide Size(mm) | 880×650 |
| Bed Size(mm) | 1390×680 |
NC1-2000(2)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 2000
- Stroke(mm)
- 250
- SPM(spm)
- 25〜45
- Die Height(mm)
- 450
- Slide Size(mm)
- 880×650
- Bed Size(mm)
- 1390×840
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 2000 |
| Stroke(mm) | 250 |
| SPM(spm) | 25〜45 |
| Die Height(mm) | 450 |
| Slide Size(mm) | 880×650 |
| Bed Size(mm) | 1390×840 |
NC1-2500(2)E
- Frame Shape
- C-Frame
- Capacity(kN)
- 2500
- Stroke(mm)
- 300
- SPM(spm)
- 20〜35
- Die Height(mm)
- 540
- Slide Size(mm)
- 1100×730
- Bed Size(mm)
- 1750×900
| Frame Shape | C-Frame |
|---|---|
| Capacity(kN) | 2500 |
| Stroke(mm) | 300 |
| SPM(spm) | 20〜35 |
| Die Height(mm) | 540 |
| Slide Size(mm) | 1100×730 |
| Bed Size(mm) | 1750×900 |
| Model | NC1-350(2)E | NC1-350(1)E | NC1-450(1)E | NC1-450(S)E | NC1-450(2)E | NC1-600(1)E | NC1-600(2)E |
|---|---|---|---|---|---|---|---|
| Frame Shape | C-Frame | C-Frame | C-Frame | C-Frame | C-Frame | C-Frame | C-Frame |
| Capacity(kN) | 350 | 350 | 450 | 450 | 450 | 600 | 600 |
| Stroke(mm) | 120 | 70 | 80 | 50 | 120 | 90 | 140 |
| SPM(spm) | 55〜105 | 90〜150 | 65〜130 | 85〜175 | 50〜95 | 60〜120 | 45〜85 |
| Die Height(mm) | 250 | 200 | 250 | 250 | 270 | 270 | 300 |
| Die Height Adjustment(mm) | - | - | - | - | - | - | - |
| Slide Size(mm) | 380×300 | 380×300 | 410×340 | 410×340 | 410×340 | 480×400 | 480×400 |
| Bed Size(mm) | 730×380 | 730×310 | 810×360 | 810×360 | 810×440 | 870×400 | 870×520 |
| Model | NC1-600(S)E | NC1-800(1)E | NC1-800(2)E | NC1-1100(2)E | NC1-1100(1)E | NC1-1500(2)E | NC1-1500(1)E |
|---|---|---|---|---|---|---|---|
| Frame Shape | C-Frame | C-Frame | C-Frame | C-Frame | C-Frame | C-Frame | C-Frame |
| Capacity(kN) | 600 | 800 | 800 | 1100 | 1100 | 1500 | 1500 |
| Stroke(mm) | 55 | 100 | 160 | 180 | 110 | 200 | 130 |
| SPM(spm) | 80〜165 | 55〜110 | 40〜75 | 35〜65 | 50〜100 | 30〜55 | 40〜85 |
| Die Height(mm) | 270 | 300 | 320 | 350 | 320 | 400 | 350 |
| Die Height Adjustment(mm) | - | - | - | - | - | - | - |
| Slide Size(mm) | 480×400 | 540×460 | 540×460 | 630×520 | 630×520 | 700×580 | 700×580 |
| Bed Size(mm) | 870×400 | 950×460 | 950×460 | 1070×680 | 1070×520 | 1170×760 | 1170×600 |
| Model | NC1-2000(1)E | NC1-2000(2)E | NC1-2500(2)E |
|---|---|---|---|
| Frame Shape | C-Frame | C-Frame | C-Frame |
| Capacity(kN) | 2000 | 2000 | 2500 |
| Stroke(mm) | 160 | 250 | 300 |
| SPM(spm) | 35〜70 | 25〜45 | 20〜35 |
| Die Height(mm) | 410 | 450 | 540 |
| Die Height Adjustment(mm) | - | - | - |
| Slide Size(mm) | 880×650 | 880×650 | 1100×730 |
| Bed Size(mm) | 1390×680 | 1390×840 | 1750×900 |
