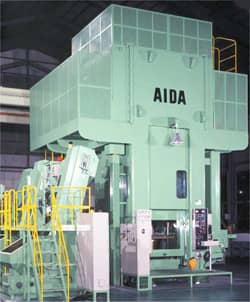

AIDA CF1
Generates high forming force even from a higher stroke position. Equipped with a one-point long-stroke link mechanism that minimizes thrust force.
Cold Forging
Specifications
CF1-2200C
- Frame Shape
- Straight Side
- Capacity(kN)
- 2200
- Stroke(mm)
- 160
- SPM(spm)
- 25〜40
- Die Height(mm)
- 420
- Die Height Adjustment(mm)
- 30
- Slide Size(mm)
- 700×500
- Bed Size(mm)
- 1050×600
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 2200 |
| Stroke(mm) | 160 |
| SPM(spm) | 25〜40 |
| Die Height(mm) | 420 |
| Die Height Adjustment(mm) | 30 |
| Slide Size(mm) | 700×500 |
| Bed Size(mm) | 1050×600 |
CF1-4000S
- Frame Shape
- Straight Side
- Capacity(kN)
- 4000
- Stroke(mm)
- 400
- SPM(spm)
- 20〜30
- Die Height(mm)
- 900
- Die Height Adjustment(mm)
- 50
- Slide Size(mm)
- 750×750
- Bed Size(mm)
- 750×750
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 4000 |
| Stroke(mm) | 400 |
| SPM(spm) | 20〜30 |
| Die Height(mm) | 900 |
| Die Height Adjustment(mm) | 50 |
| Slide Size(mm) | 750×750 |
| Bed Size(mm) | 750×750 |
CF1-6300S
- Frame Shape
- Straight Side
- Capacity(kN)
- 6300
- Stroke(mm)
- 400
- SPM(spm)
- 15〜25
- Die Height(mm)
- 900
- Die Height Adjustment(mm)
- 50
- Slide Size(mm)
- 800×800
- Bed Size(mm)
- 800×800
| Frame Shape | Straight Side |
|---|---|
| Capacity(kN) | 6300 |
| Stroke(mm) | 400 |
| SPM(spm) | 15〜25 |
| Die Height(mm) | 900 |
| Die Height Adjustment(mm) | 50 |
| Slide Size(mm) | 800×800 |
| Bed Size(mm) | 800×800 |
| Model | CF1-2200C | CF1-4000S | CF1-6300S |
|---|---|---|---|
| Frame Shape | Straight Side | Straight Side | Straight Side |
| Capacity(kN) | 2200 | 4000 | 6300 |
| Stroke(mm) | 160 | 400 | 400 |
| SPM(spm) | 25〜40 | 20〜30 | 15〜25 |
| Die Height(mm) | 420 | 900 | 900 |
| Die Height Adjustment(mm) | 30 | 50 | 50 |
| Slide Size(mm) | 700×500 | 750×750 | 800×800 |
| Bed Size(mm) | 1050×600 | 750×750 | 800×800 |
