Pascal Die Clamping and Change System

Products

Pascal is a die change system maker known for its hydraulic clamps and air-driven high-pressure pumps. Hydraulic clamps for the bolster and slide T-slots, traveling clamps that move to the die width, die lifters, pre-rollers and the control units that drive them cover the whole press changeover.

Hydraulic clamps (for dies with U-cut)(3)

Hydraulic clamps (for dies without U-cut)(2)

Traveling clamps(3)

Die lifters and die rollers(2)

Pre-rollers and pre-roller stands(2)

Control systems(6)

Magnetic clamps(1)

Swing-rod and twist clamps(2)

Hydraulic clamps (for dies with U-cut)

Hydraulic clamps inserted in the bolster/slide T-slot that clamp the U-cut of the die: manual-slide TXA and auto-slide TXC (air) / TXE (motor).

TXAPascal clamp

Hydraulic clamp inserted in the T-slot to clamp the U-cut of the die. Clamp hook FX is available for temporary placement. (QDC catalog p.28)

Key specifications

Action / pressure: Hydraulic 24.5MPa

TXCAuto-slide clamp (air)

Slides in the T-slot automatically with an air cylinder, cutting die change time further. (QDC catalog p.37)

Key specifications

Action / pressure: Hydraulic 24.5MPa

TXEAuto-slide clamp (motor)

Motor-driven auto-slide clamp that leaves the whole slide underside usable. (QDC catalog p.37)

Key specifications

Action / pressure: Hydraulic 24.5MPa

Hydraulic clamps (for dies without U-cut)

Lever-type hydraulic clamps for dies that cannot have a U-cut: manual-slide TYA and air auto-slide TYC.

TYAPascal clamp (lever type)

Lever-type clamp inserted in the T-slot and slid by hand, for dies that cannot have a U-cut. (QDC catalog p.84)

Key specifications

Action / pressure: Hydraulic 24.5MPa

TYCAuto-slide clamp (lever type)

Lever-type clamp that auto-slides in the T-slot with an air cylinder. (QDC catalog p.102)

Key specifications

Action / pressure: Hydraulic 24.5MPa

Traveling clamps

Clamps mounted on the slide face that travel to the die width automatically, for unattended die change on large presses.

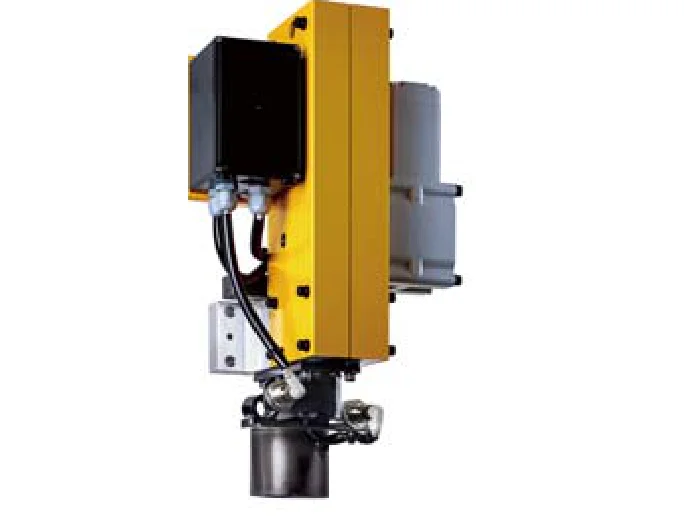

TRXTraveling clamp (motor)

Motor-driven traveling clamp with a short projection from the slide face. (QDC catalog p.74)

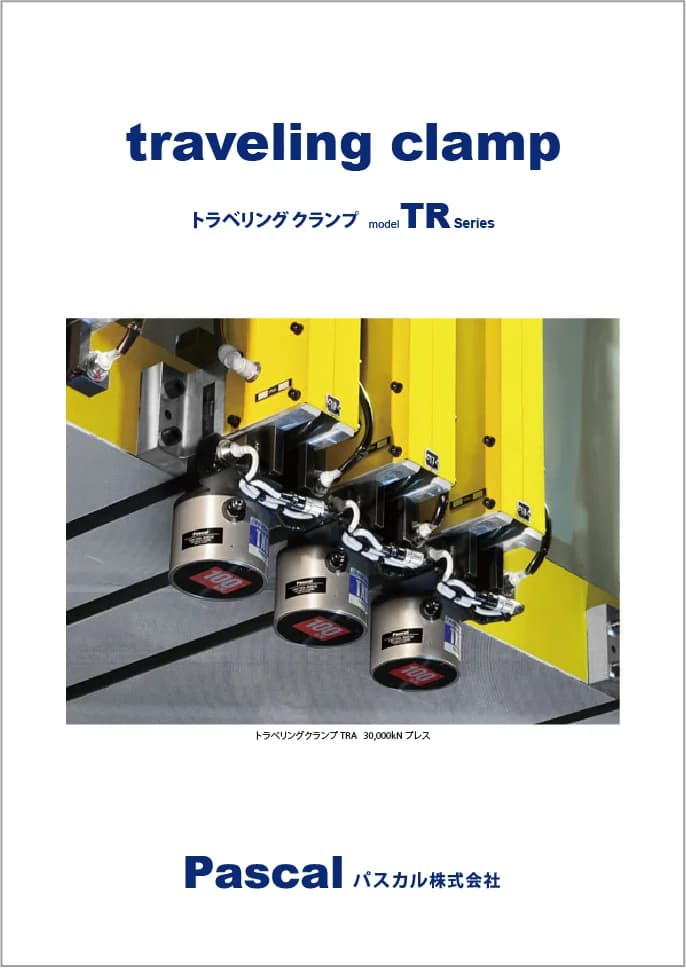

TRTraveling clamp TR series

Traveling clamps proven on presses up to the 30,000 kN class; the clamps travel to the die width automatically.

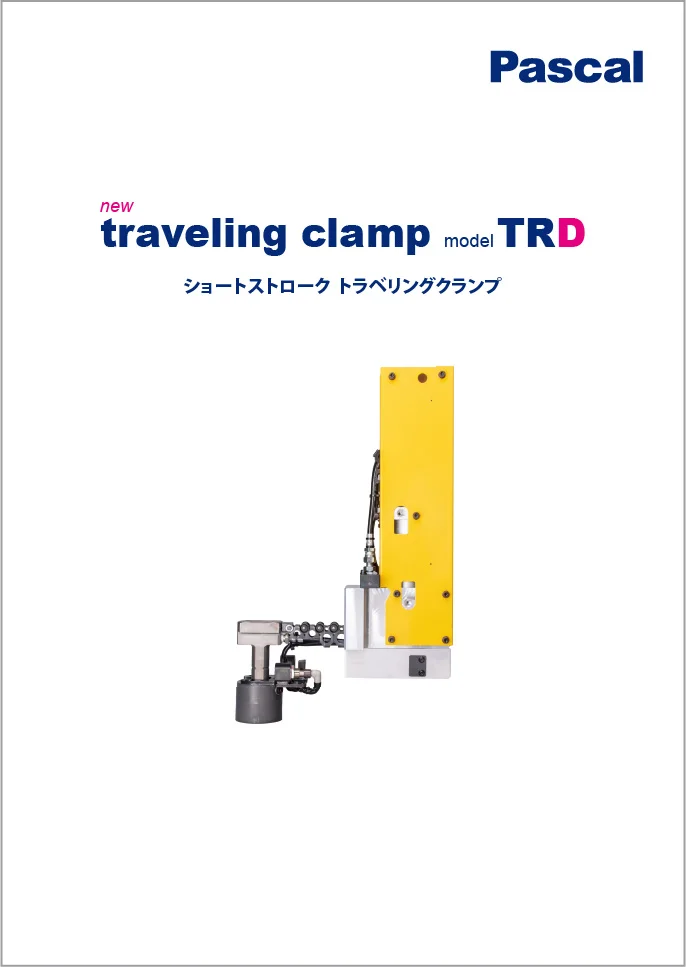

TRDShort-stroke traveling clamp

Withstands press vibration and shock; slim body with little projection from the slide face keeps wiring and piping tidy.

Die lifters and die rollers

Inserted in the bolster T-slots to float the die so it slides with little force: hydraulic DLF and spring-type DRA.

DLFDie lifter

Lifts heavy dies off the bolster with hydraulic cylinders so they slide smoothly. (QDC catalog p.113)

Key specifications

Action / pressure: Hydraulic 24.5MPa

DRADie roller

Spring-loaded rollers lift the die without a hydraulic source; just insert into the bolster T-slot. (QDC catalog p.135)

Pre-rollers and pre-roller stands

Rollers fitted to the bolster front for loading and unloading dies, plus rigid stands for heavy dies.

PRPre-roller

Rollers mounted on the bolster front for easy loading and unloading of dies. (QDC catalog p.139)

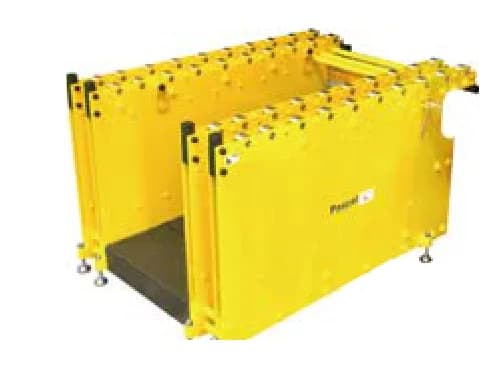

PRMPre-roller stand

Far stiffer than pre-rollers with little deflection under die weight, for smooth handling of heavy dies. (QDC catalog p.199)

Control systems

Control units, power units and non-leak valve units for the clamps and die lifters, built around the air-driven Pascal pump that produces 24.5 MPa hydraulic pressure.

HCSControl unit (small / medium presses)

Air-driven hydraulic control unit with electric (solenoid) control, combining the Pascal pump and non-leak valve compactly. (QDC catalog p.223)

Key specifications

Action / pressure: Air 0.47MPa → Hydraulic 24.5MPa

HCPControl unit (medium / large presses)

HCS model for medium and large presses. (QDC catalog p.225)

Key specifications

Action / pressure: Air 0.47MPa → Hydraulic 24.5MPa

HUTPower unit

Power source using the compact, high-performance Pascal pump that generates 24.5 MPa from compressed air. (QDC catalog p.229)

Key specifications

Action / pressure: Air 0.47MPa → Hydraulic 24.5MPa

VHANon-leak valve unit (manual)

Manually operated valve unit with the zero-leak function essential for hydraulic clamps. (QDC catalog p.227)

VSBNon-leak valve unit (electric)

Electrically controlled non-leak valve unit, used together with the HUT power unit. (QDC catalog p.231)

GSHAir solenoid valve unit

Electrically controlled air directional valve for the air cylinders of the TXC / TYC auto-slide clamps. (QDC catalog p.233)

Magnetic clamps

Electro-permanent magnetic clamps that hold any die shape over the whole bolster/slide face, ideal for high-speed presses, with die-shift detection.

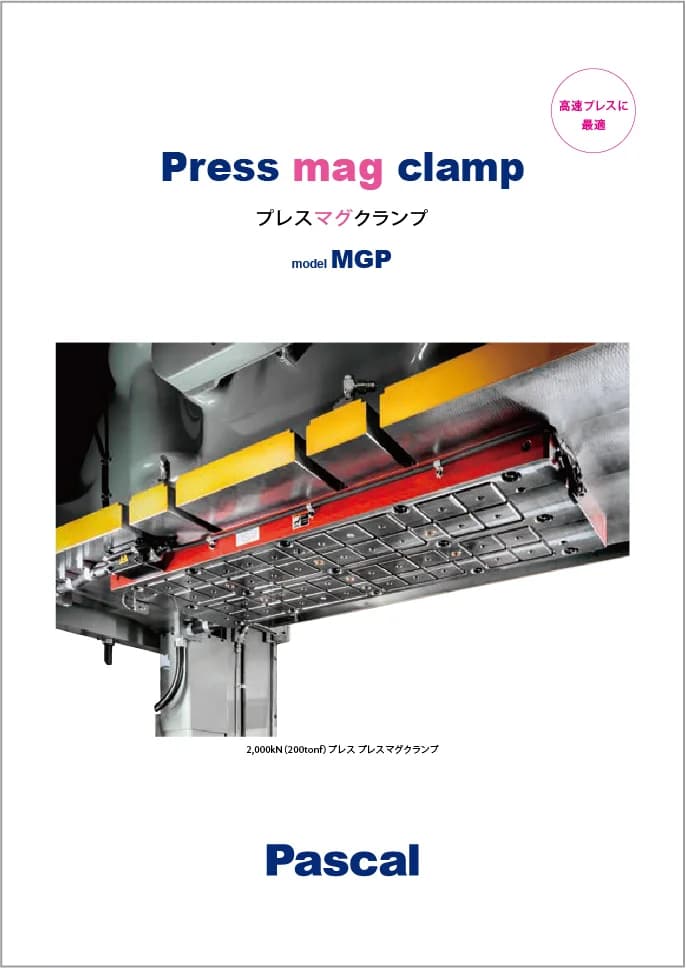

MGPPress mag clamp

Magnetic clamp that holds any die shape over the full face, ideal for high-speed presses, with residual-flux springs and die-shift detection cores.

Swing-rod and twist clamps

Clamps whose rod swings clear of the die during loading: air-operated TNA for upper dies and the twist-mechanism TGC.

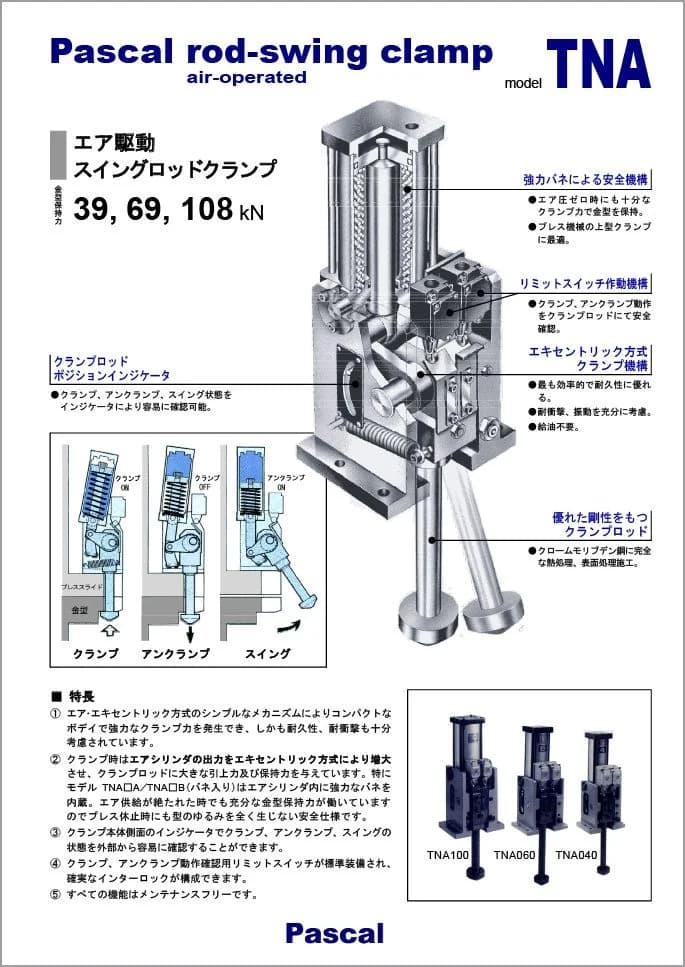

TNARod-swing clamp (air-operated)

Air-operated clamp whose rod swings clear during die loading; a strong spring keeps the die held even with zero air pressure. Ideal for upper dies.

Key specifications

Action / pressure: Clamp force 39 / 69 / 108kN

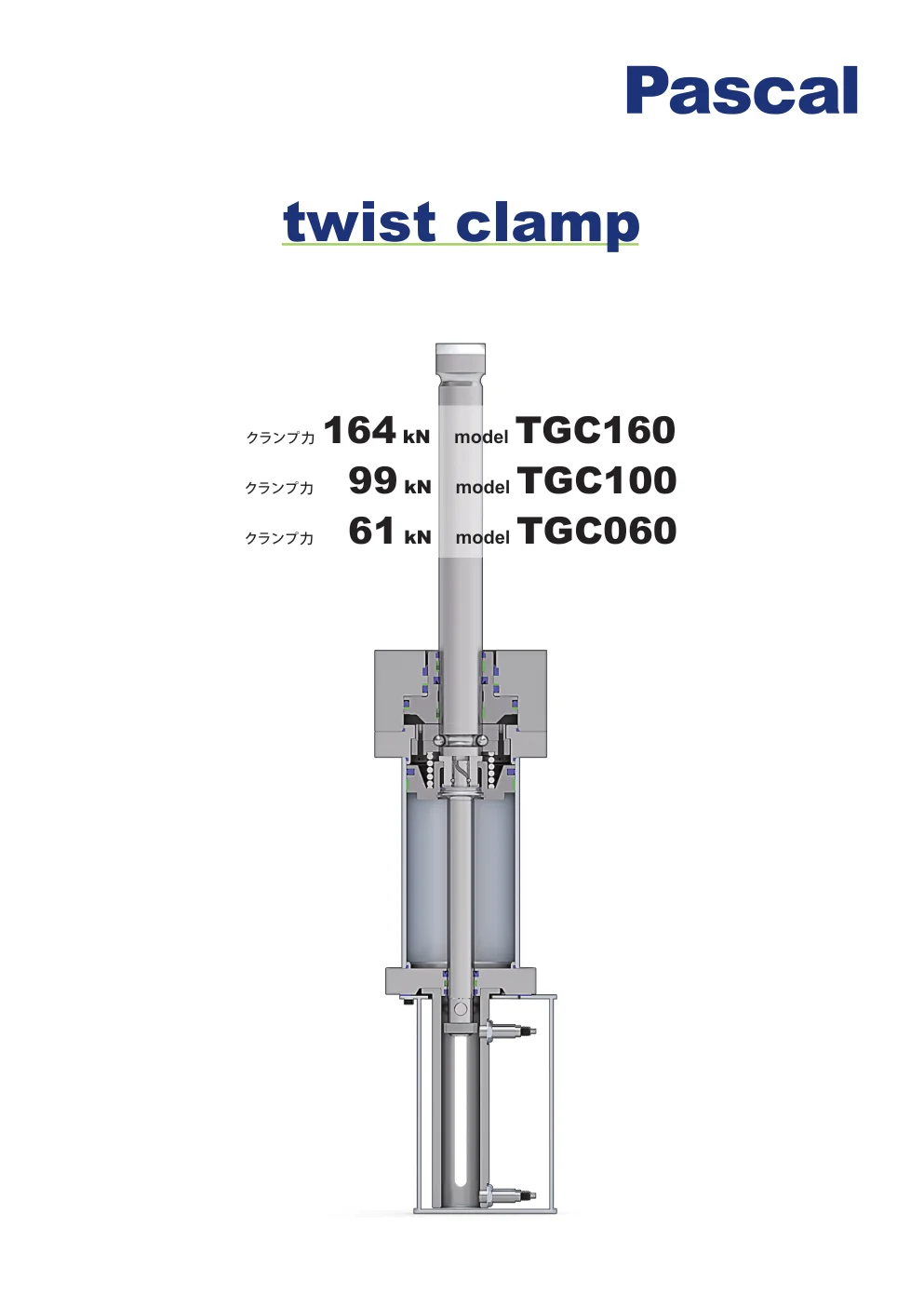

TGCTwist clamp

Clamp that rotates the rod with a twist mechanism to lock the die securely, in three sizes of 61 / 99 / 164 kN.

Key specifications

Action / pressure: Clamp force 61 / 99 / 164kN

Ask about Pascal products

We size and count the clamps for your press tonnage and dies, fit them to existing machines and match them with control units, all in Thailand.
