MEGA TECH

AIDA K1-400

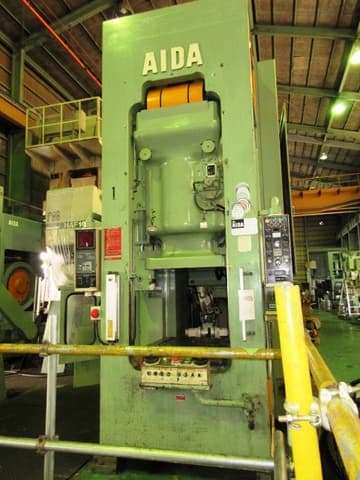

Forging Press K1-400

Basic Information

Management No.mtp1905
Storage LocationJapan
TypeForging Press
Drive Typeknuckle_motion
ManufacturerAIDA
ModelK1-400
Year1993
Capacity(Ton)400
Stroke Length(mm)180
SPM(SPM)30-50
Die height(mm)500
Slide Adjustment(mm)50
Slide area(mm)700x600
Bolster area(mm)700x600
Main Motor(kW)37
AccessoriesLight Curtain Safety Device
