| Management No. | mtp1882 |
| Storage Location | Japan |

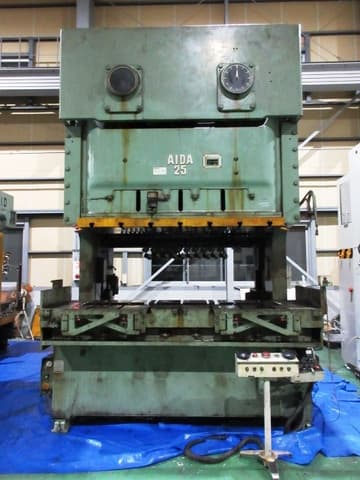

| Type | C-Frame Mechanical Press |
| Drive Type | Crank Motion |
| Manufacturer | AIDA |
| Model | NC2-25(2)-B |
| Year | 1985 |
| Capacity(Ton) | 250 |
| Stroke Length(mm) | 280 |
| SPM(SPM) | 25-35 |
| Die height(mm) | 550 |
| Slide Adjustment(mm) | 120 |
| Slide area(mm) | 2100x700 |
| Bolster area(mm) | 2700x920 |
| Main Motor(kW) | 30 |
| Accessories | Light Curtain Safety Device |
AIDA 400T CF1-40C
AIDA 400T CF1-40C
AIDA 110T NC1-110(2)
AIDA 110T NC1-110(2)
AIDA 35T NC1-3(1)
AIDA 35T NC1-3(1)
KOMATSU 150T OBS150-2
KOMATSU 150T OBS150-2
Prices vary depending on conditions such as as-is delivery or post-maintenance delivery. Please contact us for details.
