| Management No. | mtp1873 |
| Storage Location | Japan |

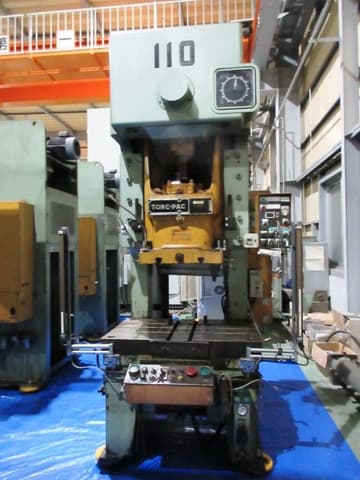

| Type | C-Frame Mechanical Press |
| Drive Type | Crank Motion |
| Manufacturer | AMADA |
| Model | TP-110C |
| Year | 1991 |
| Capacity(Ton) | 110 |
| Stroke Length(mm) | 200 |
| SPM(SPM) | 30-55 |
| Die height(mm) | 390 |
| Slide Adjustment(mm) | 100 |
| Slide area(mm) | 600x500 |
| Bolster area(mm) | 1100x700 |
| Main Motor(kW) | 7.5 |
| Accessories | Light Curtain Safety Device, Anti-vibration Device |
