AIDA PMX-L2-200

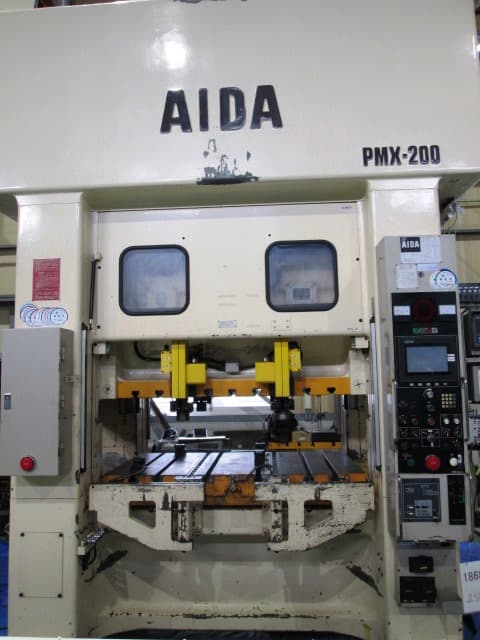

Straight Side Mechanical Press PMX-L2-200

Basic Information

Management No.mtp1868
Storage LocationJapan
TypeStraight Side Mechanical Press
Drive TypeLink Motion
ManufacturerAIDA
ModelPMX-L2-200
Year1993
Capacity(Ton)200
Stroke Length(mm)200
SPM(SPM)50-120
Die height(mm)475
Slide Adjustment(mm)100
Slide area(mm)1550x830
Bolster area(mm)1550x950
Main Motor(kW)30
AccessoriesLight Curtain Safety Device, Anti-vibration Device
remarks制御更新済み
