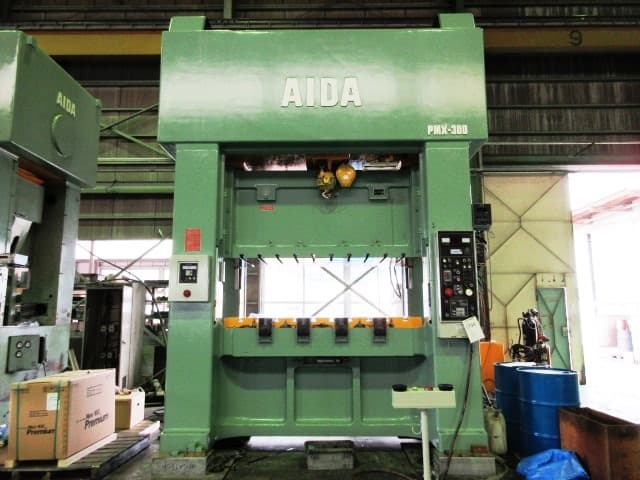

AIDA PMX-L2-300

Straight Side Mechanical Press PMX-L2-300

Basic Information

Management No.mtp1756
Storage LocationJapan
TypeStraight Side Mechanical Press
Drive TypeLink Motion
ManufacturerAIDA
ModelPMX-L2-300
Year1990
Capacity(Ton)300
Stroke Length(mm)200
SPM(SPM)40-100
Die height(mm)500
Slide Adjustment(mm)100
Slide area(mm)2150x1000
Bolster area(mm)2150x1000
Main Motor(kW)37
AccessoriesAnti-vibration Device, Light Curtain Safety Device
