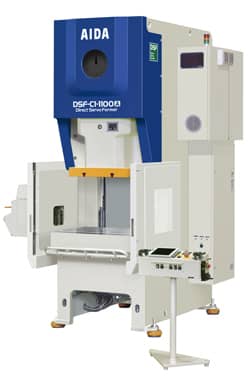

AIDA DSF-C1-A
Further enhanced with the unique strengths of a servo press — productivity, operability, and energy efficiency. A true “evolutionary” servo press created from the full integration of AIDA’s servo technologies.
単発加工ロボットライン
Model List
| Model | DSF-C1-800A | DSF-C1-1100A | DSF-C1-1500A | DSF-C1-2000A | DSF-C1-2500A |
|---|---|---|---|---|---|
| Capacity(kN) | 800 | 1100 | 1500 | 2000 | 2500 |
| Stroke(mm) | 160 | 180 | 200 | 250 | 300 |
| SPM(spm) | 1〜80 | 1〜70 | 1〜60 | 1〜50 | 1〜49 |
| Die Height(mm) | 320 | 350 | 400 | 450 | 540 |
| Slide Adjustment(mm) | - | - | - | - | - |
| Slide Size(mm) | 540×460 | 630×520 | 700×580 | 880×650 | 1100×730 |
| Bed Size(mm) | 810×600 | 940×680 | 1050×760 | 1240×840 | 1610×900 |
